Index data for S1_EPO_sdm_TM. Lines indicate 95% uncertainty interval around index values based on the model assumption of lognormal error. Thicker lines (if present) indicate input uncertainty before addition of estimated additional uncertainty parameter.
file: index1_cpuedata_S1_EPO_sdm_TM.png

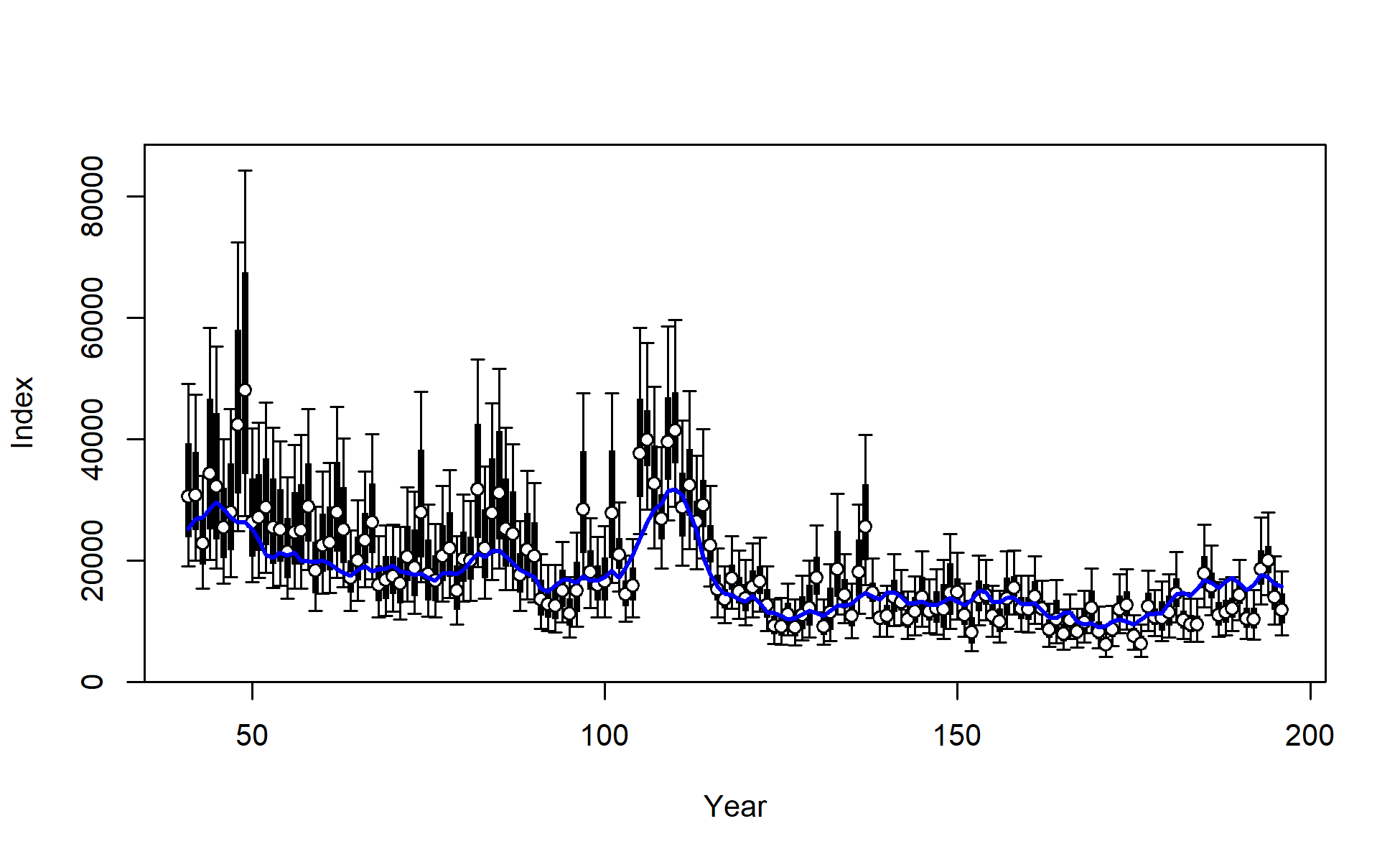

Fit to index data for S1_EPO_sdm_TM. Lines indicate 95% uncertainty interval around index values based on the model assumption of lognormal error. Thicker lines (if present) indicate input uncertainty before addition of estimated additional uncertainty parameter.
file: index2_cpuefit_S1_EPO_sdm_TM.png

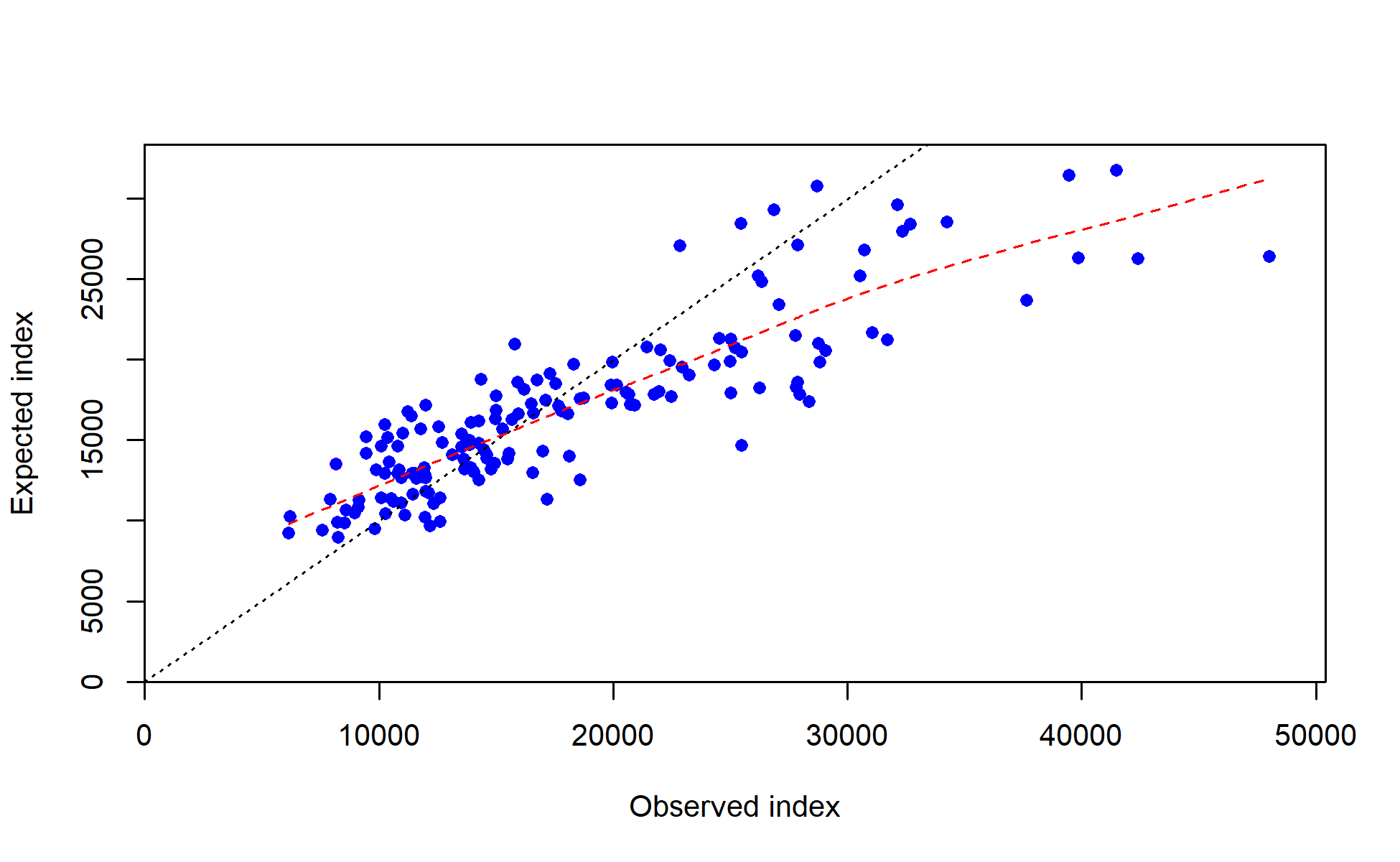

Observed vs. expected index values with smoother for S1_EPO_sdm_TM
file: index3_obs_vs_exp_S1_EPO_sdm_TM.png

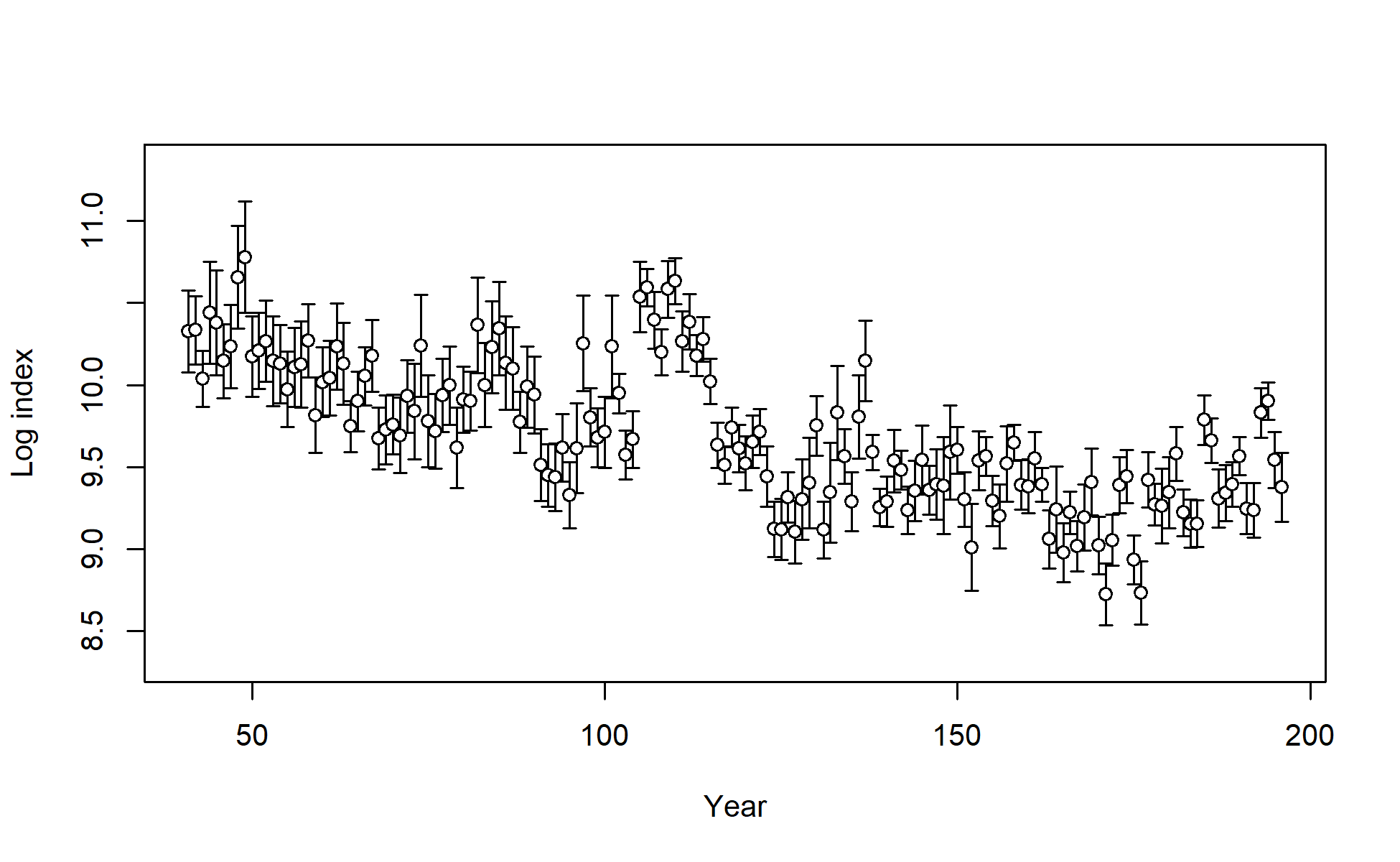

Log index data for S1_EPO_sdm_TM. Lines indicate 95% uncertainty interval around index values based on the model assumption of lognormal error. Thicker lines (if present) indicate input uncertainty before addition of estimated additional uncertainty parameter.
file: index4_logcpuedata_S1_EPO_sdm_TM.png

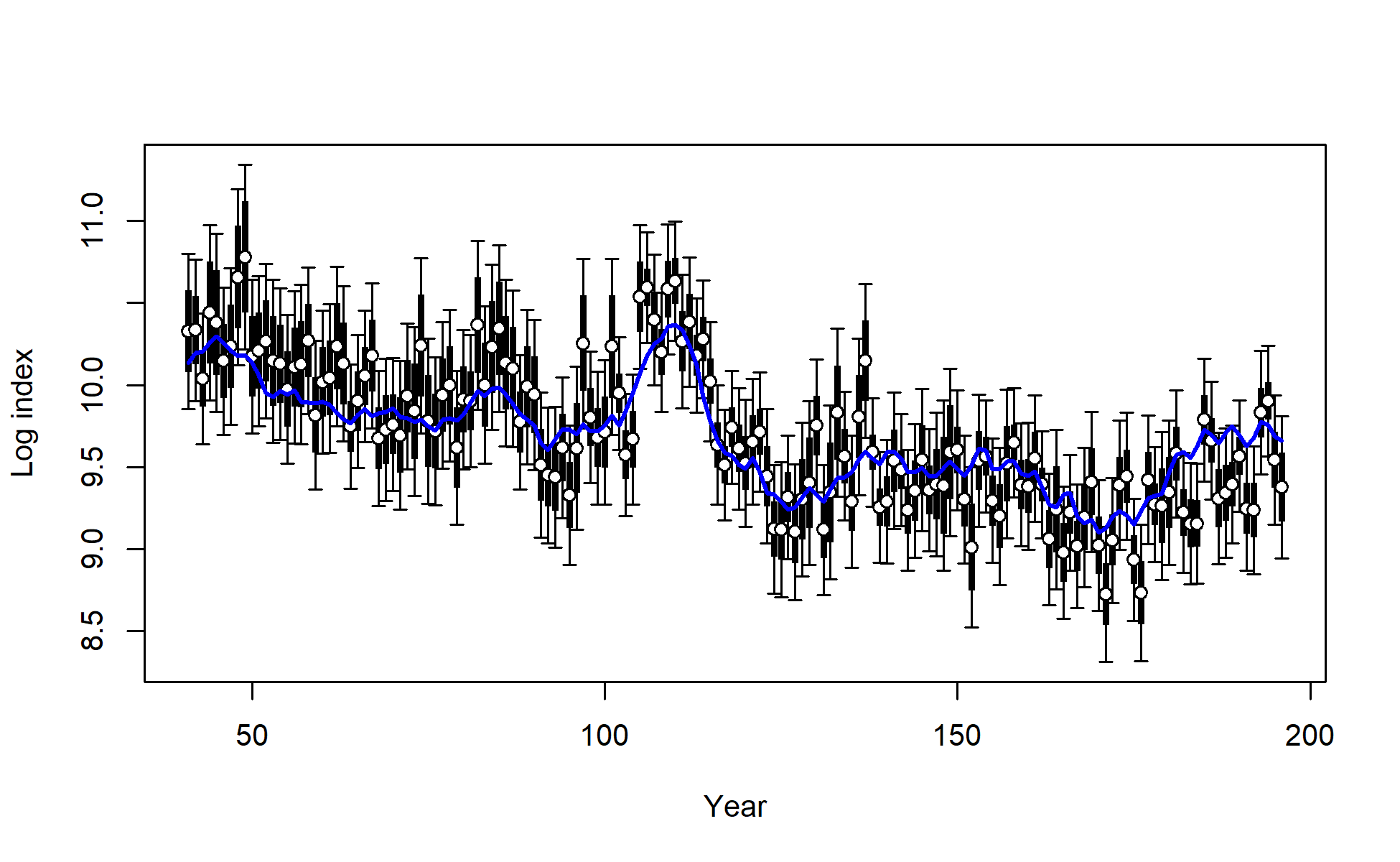

Fit to log index data on log scale for S1_EPO_sdm_TM. Lines indicate 95% uncertainty interval around index values based on the model assumption of lognormal error. Thicker lines (if present) indicate input uncertainty before addition of estimated additional uncertainty parameter.
file: index5_logcpuefit_S1_EPO_sdm_TM.png

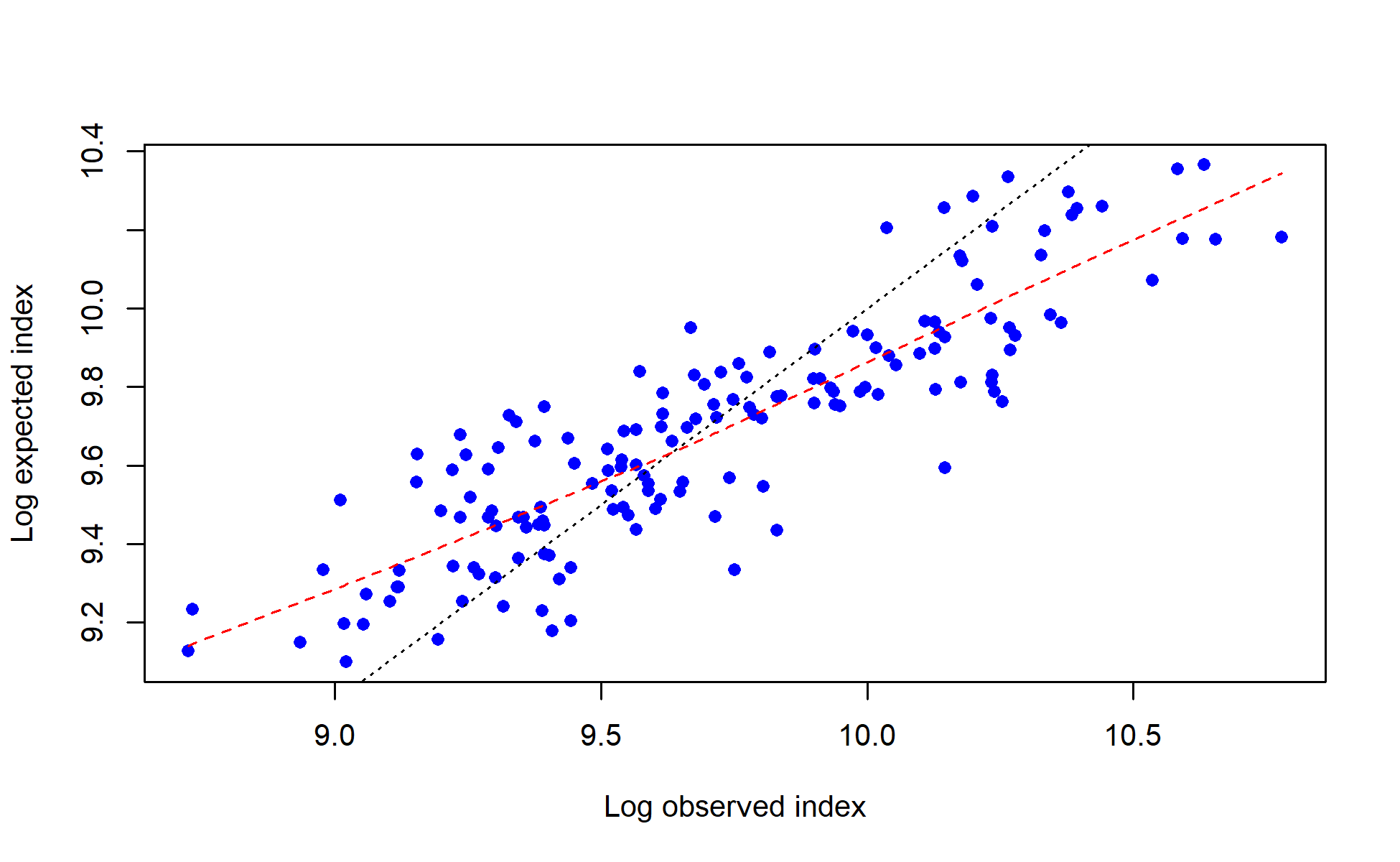

log(observed) vs. log(expected) index values with smoother for S1_EPO_sdm_TM
file: index6_log_obs_vs_exp_S1_EPO_sdm_TM.png

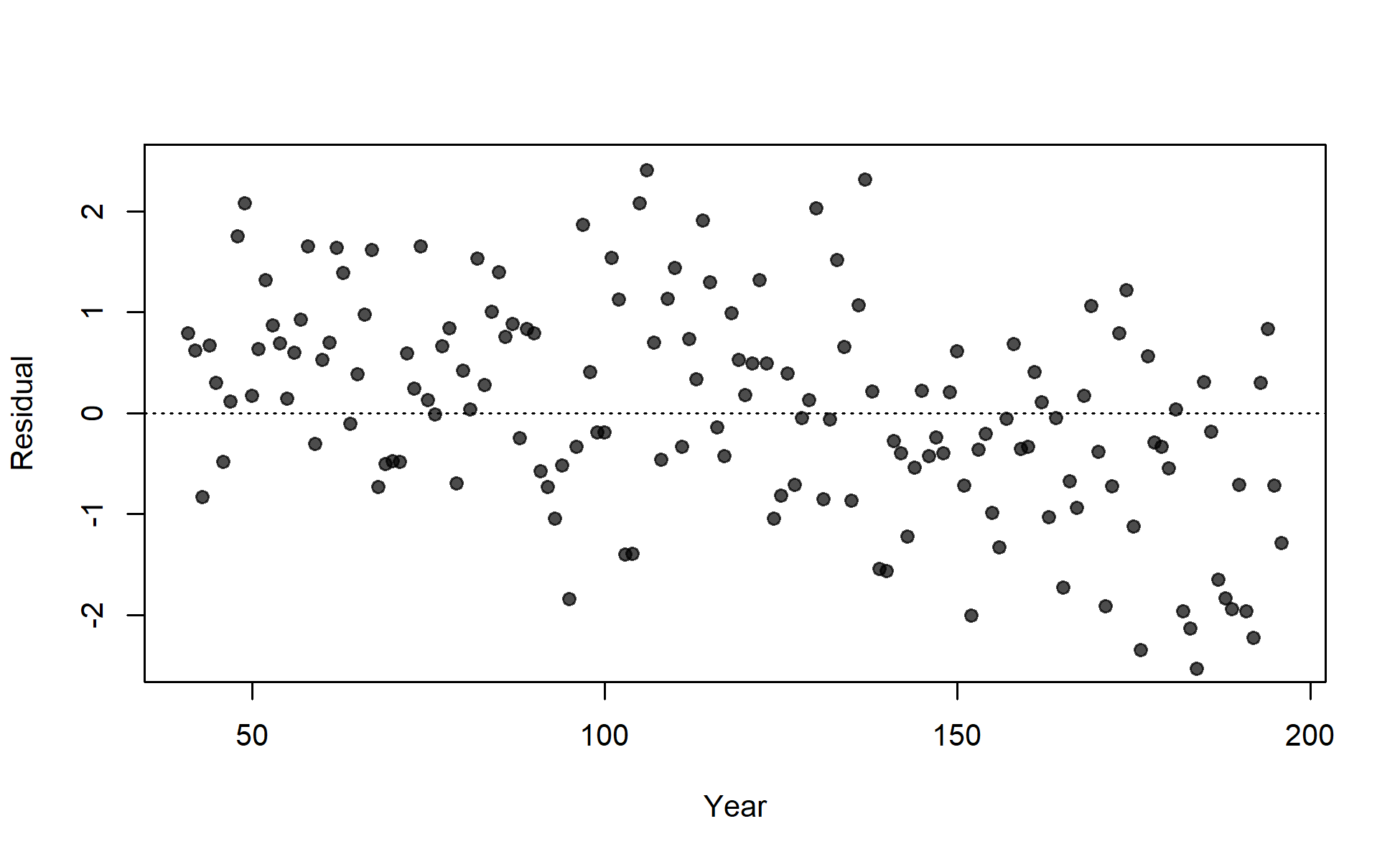

Residuals of fit to index for S1_EPO_sdm_TM.
Values are (log(Obs) - log(Exp))/SE where SE is the total standard error including any estimated additional uncertainty.
file: index10_resids_SE_total_S1_EPO_sdm_TM.png

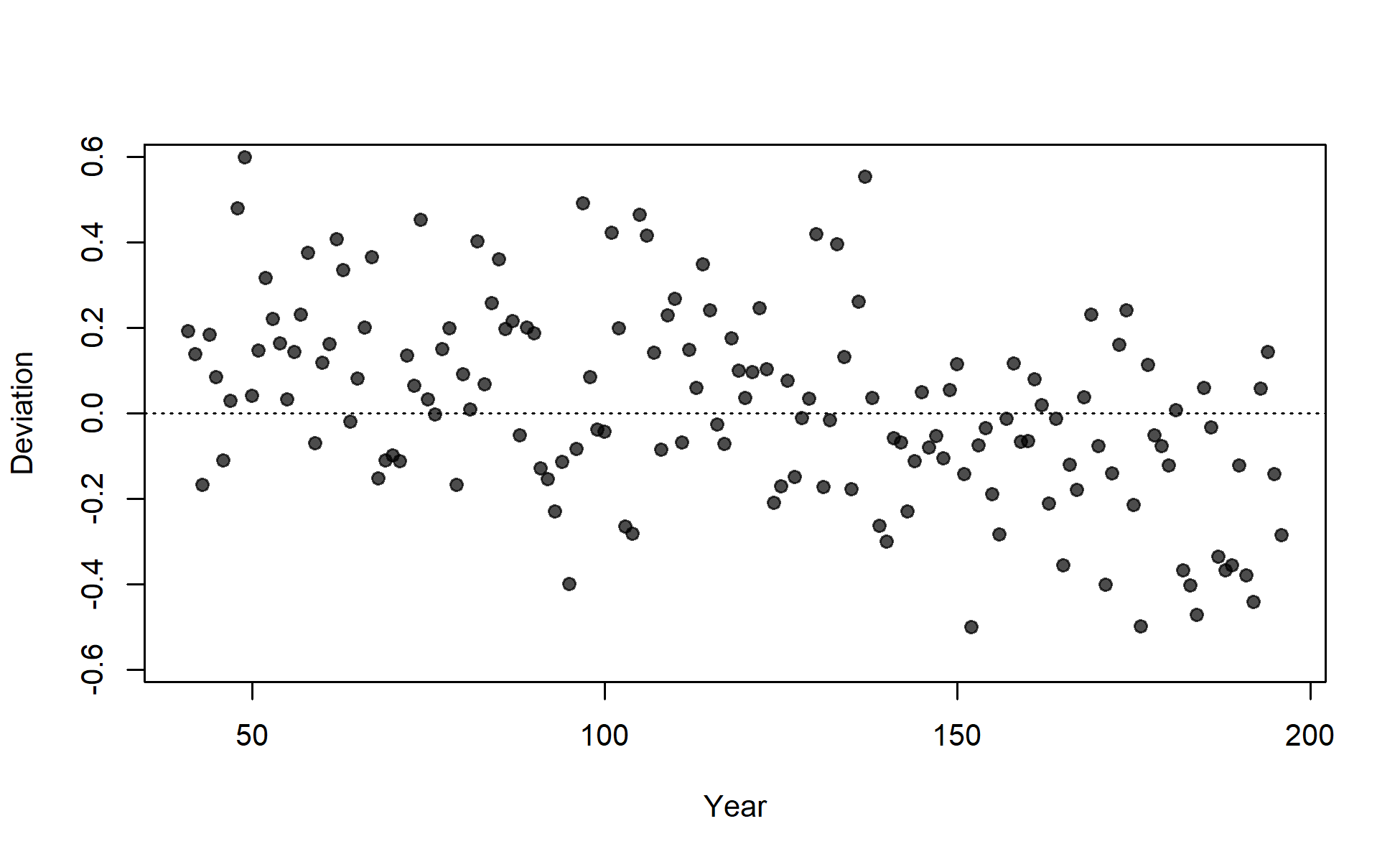

Deviations for fit to index for S1_EPO_sdm_TM.
Values are log(Obs) - log(Exp) and thus independent of index uncertainty.
file: index12_resids_SE_total_S1_EPO_sdm_TM.png

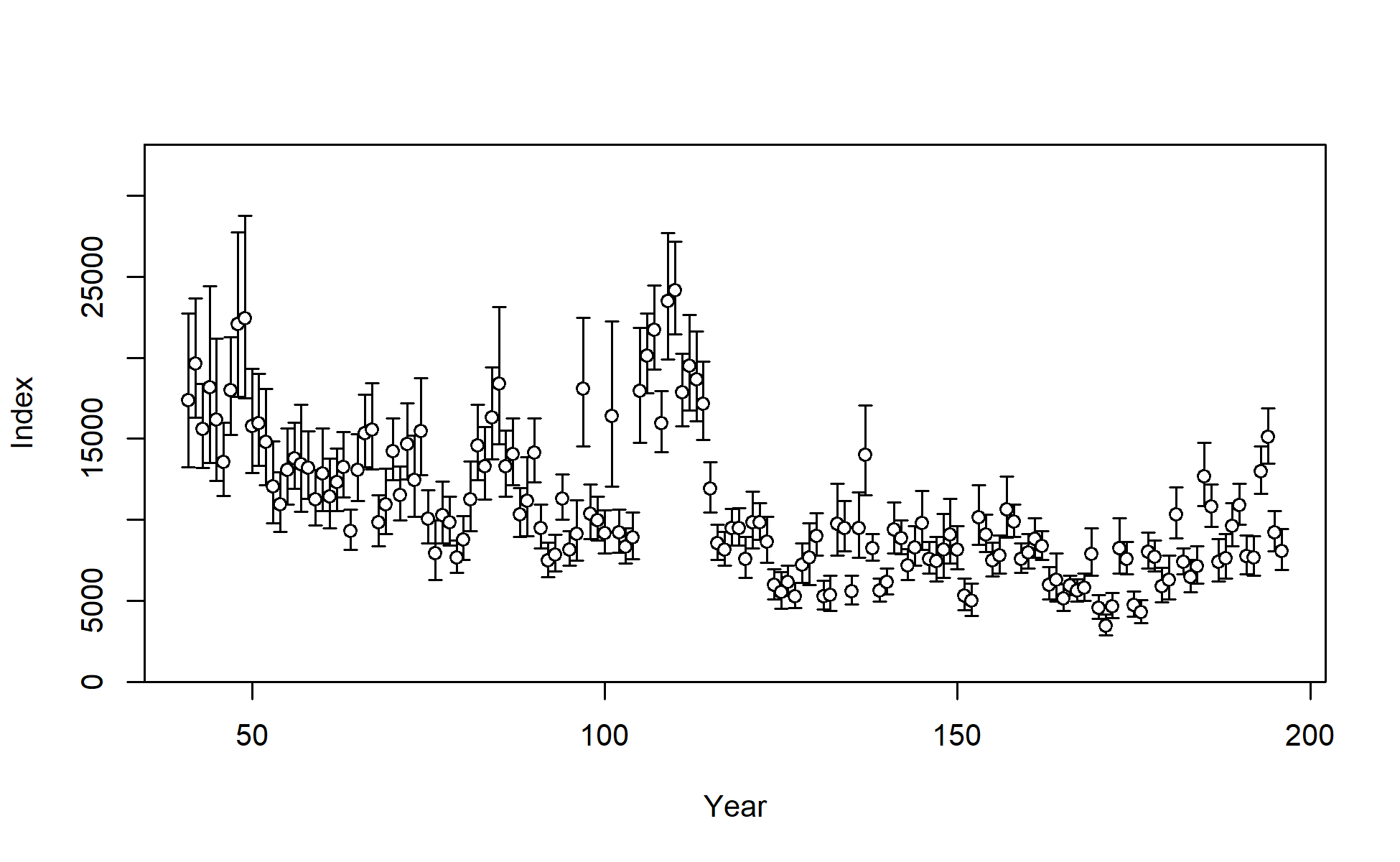

Index data for S3_PS_Core. Lines indicate 95% uncertainty interval around index values based on the model assumption of lognormal error. Thicker lines (if present) indicate input uncertainty before addition of estimated additional uncertainty parameter.
file: index1_cpuedata_S3_PS_Core.png

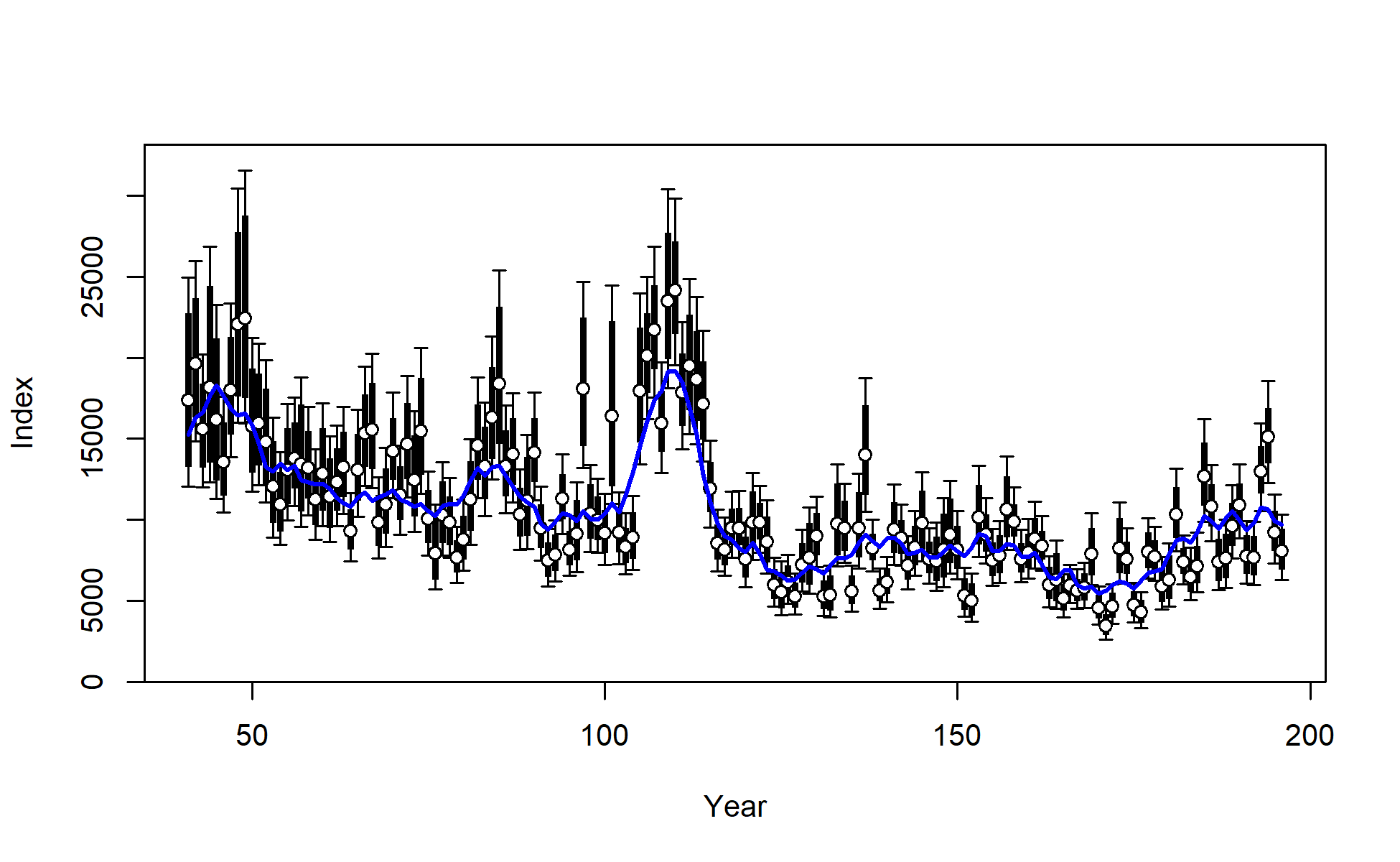

Fit to index data for S3_PS_Core. Lines indicate 95% uncertainty interval around index values based on the model assumption of lognormal error. Thicker lines (if present) indicate input uncertainty before addition of estimated additional uncertainty parameter.
file: index2_cpuefit_S3_PS_Core.png

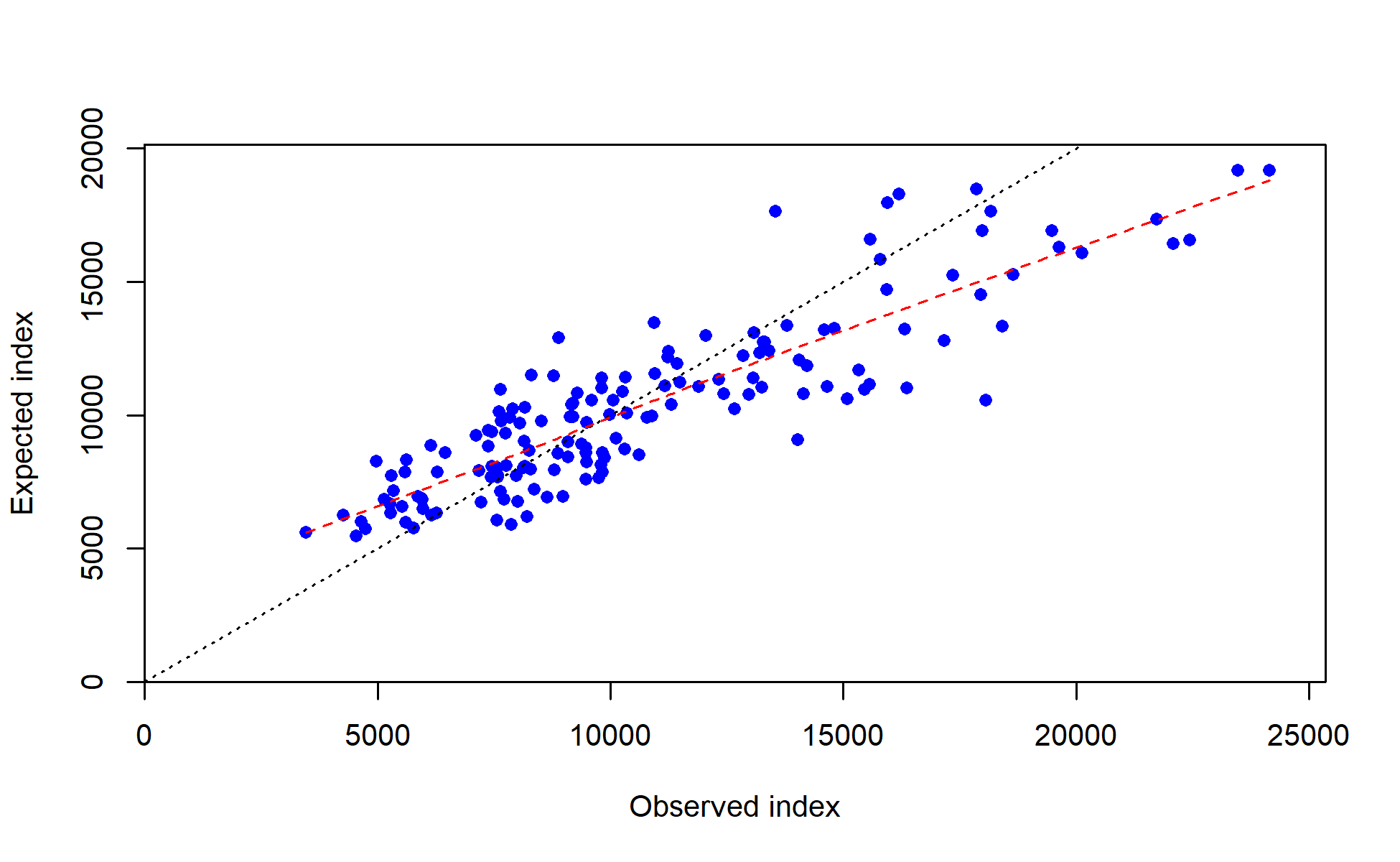

Observed vs. expected index values with smoother for S3_PS_Core
file: index3_obs_vs_exp_S3_PS_Core.png

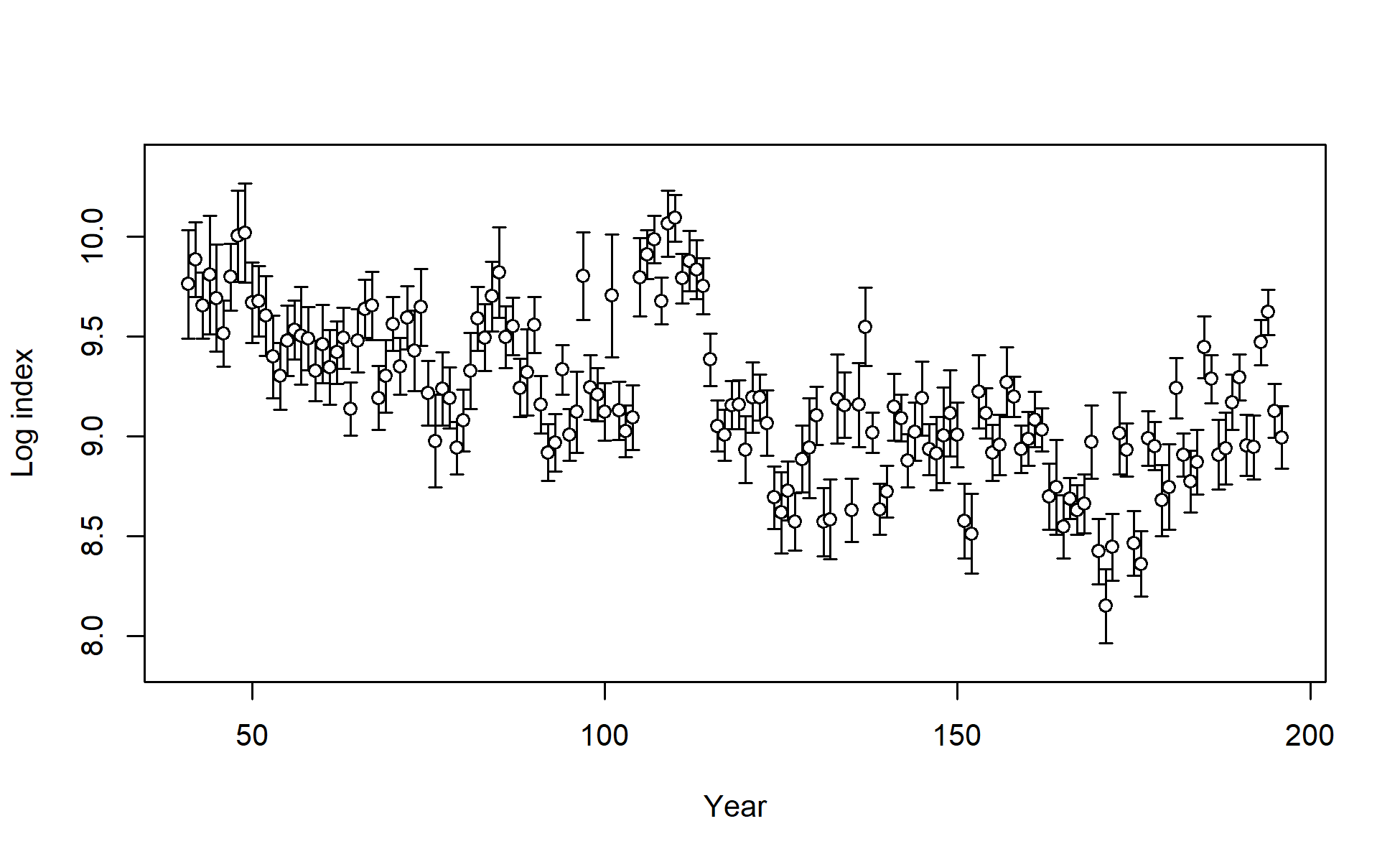

Log index data for S3_PS_Core. Lines indicate 95% uncertainty interval around index values based on the model assumption of lognormal error. Thicker lines (if present) indicate input uncertainty before addition of estimated additional uncertainty parameter.
file: index4_logcpuedata_S3_PS_Core.png

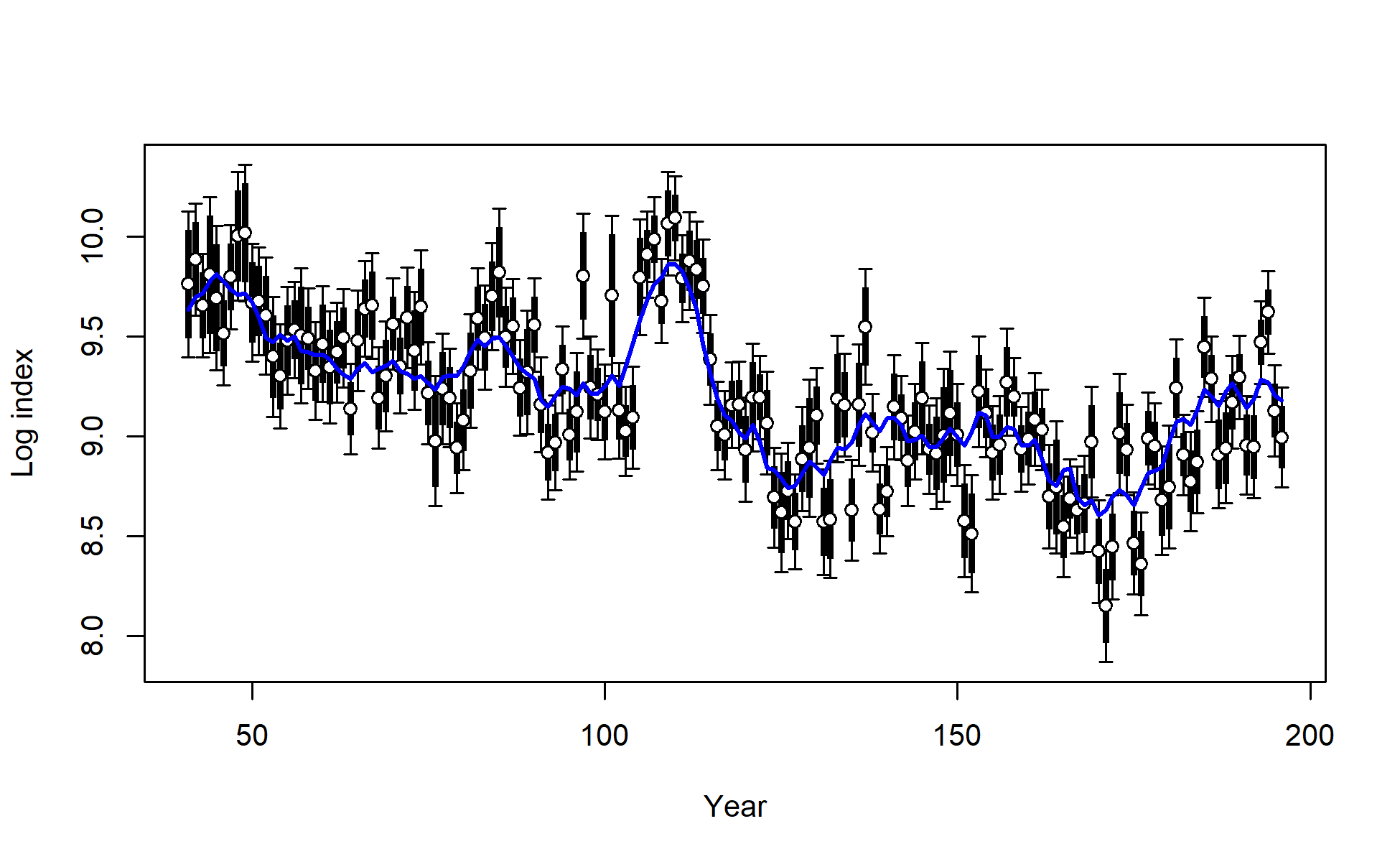

Fit to log index data on log scale for S3_PS_Core. Lines indicate 95% uncertainty interval around index values based on the model assumption of lognormal error. Thicker lines (if present) indicate input uncertainty before addition of estimated additional uncertainty parameter.
file: index5_logcpuefit_S3_PS_Core.png

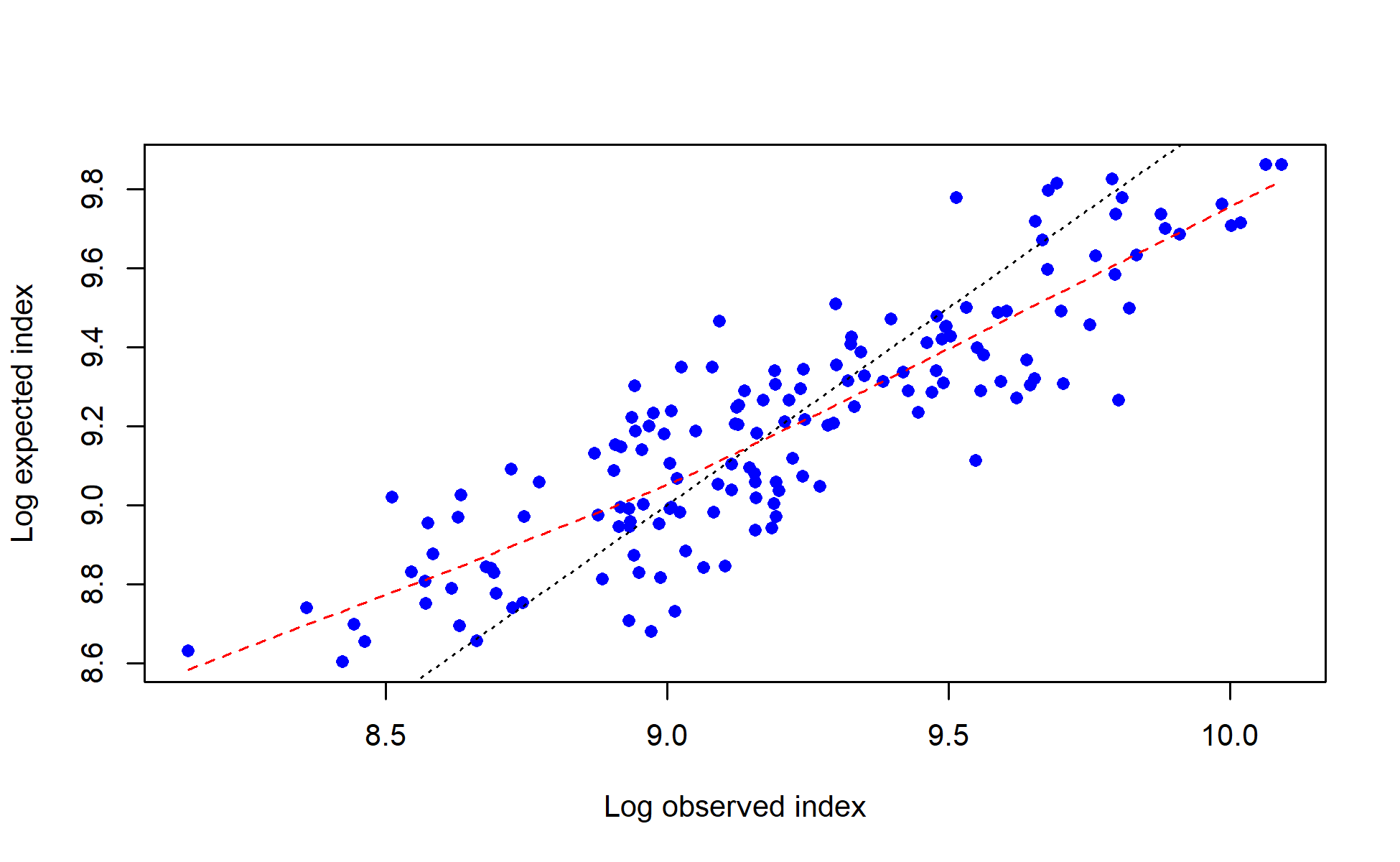

log(observed) vs. log(expected) index values with smoother for S3_PS_Core
file: index6_log_obs_vs_exp_S3_PS_Core.png

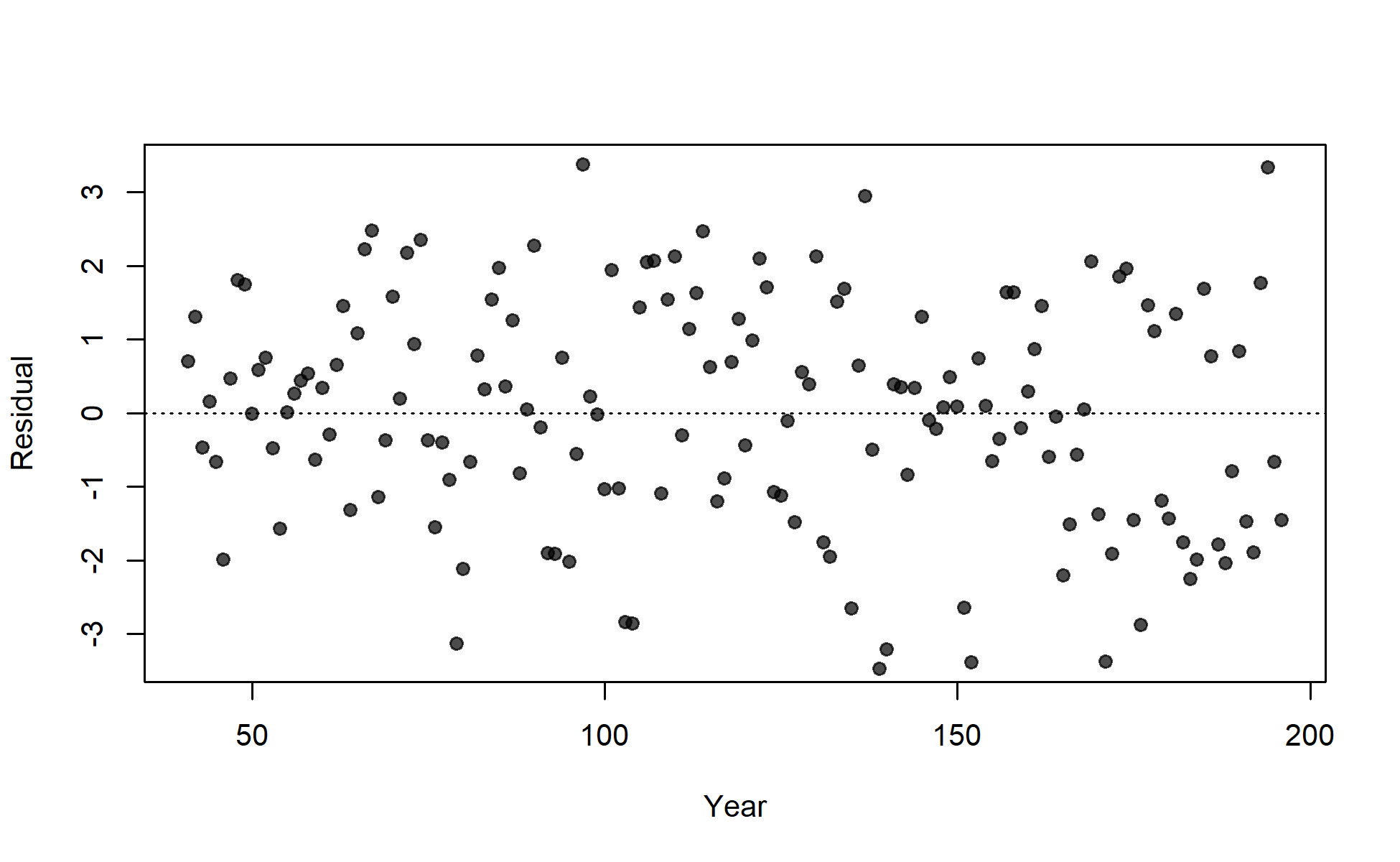

Residuals of fit to index for S3_PS_Core.
Values are (log(Obs) - log(Exp))/SE where SE is the total standard error including any estimated additional uncertainty.
file: index10_resids_SE_total_S3_PS_Core.png
Deviations for fit to index for S3_PS_Core.
Values are log(Obs) - log(Exp) and thus independent of index uncertainty.
file: index12_resids_SE_total_S3_PS_Core.png

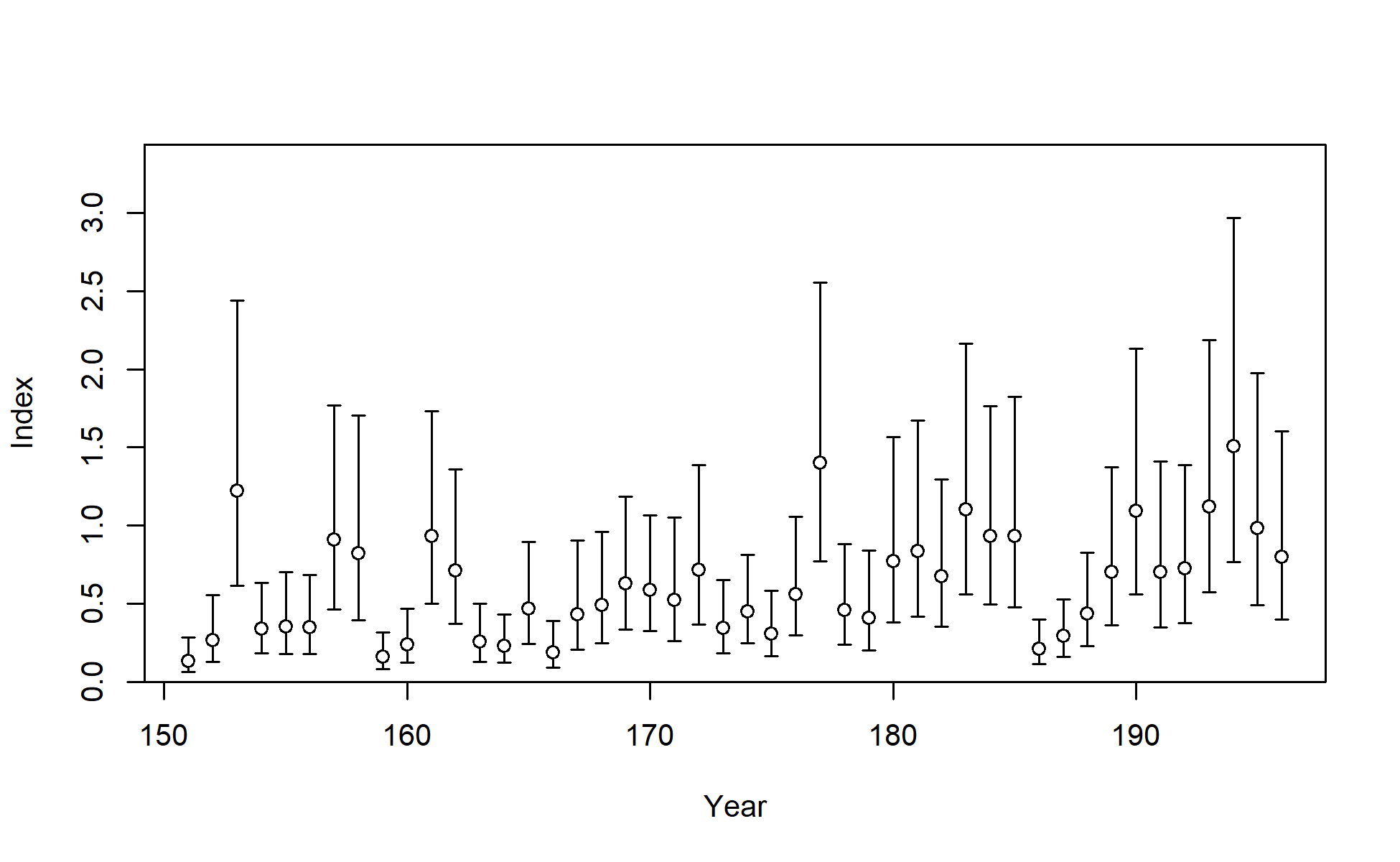

Index data for S6_PS_Echo_east. Lines indicate 95% uncertainty interval around index values based on the model assumption of lognormal error. Thicker lines (if present) indicate input uncertainty before addition of estimated additional uncertainty parameter.
file: index1_cpuedata_S6_PS_Echo_east.png

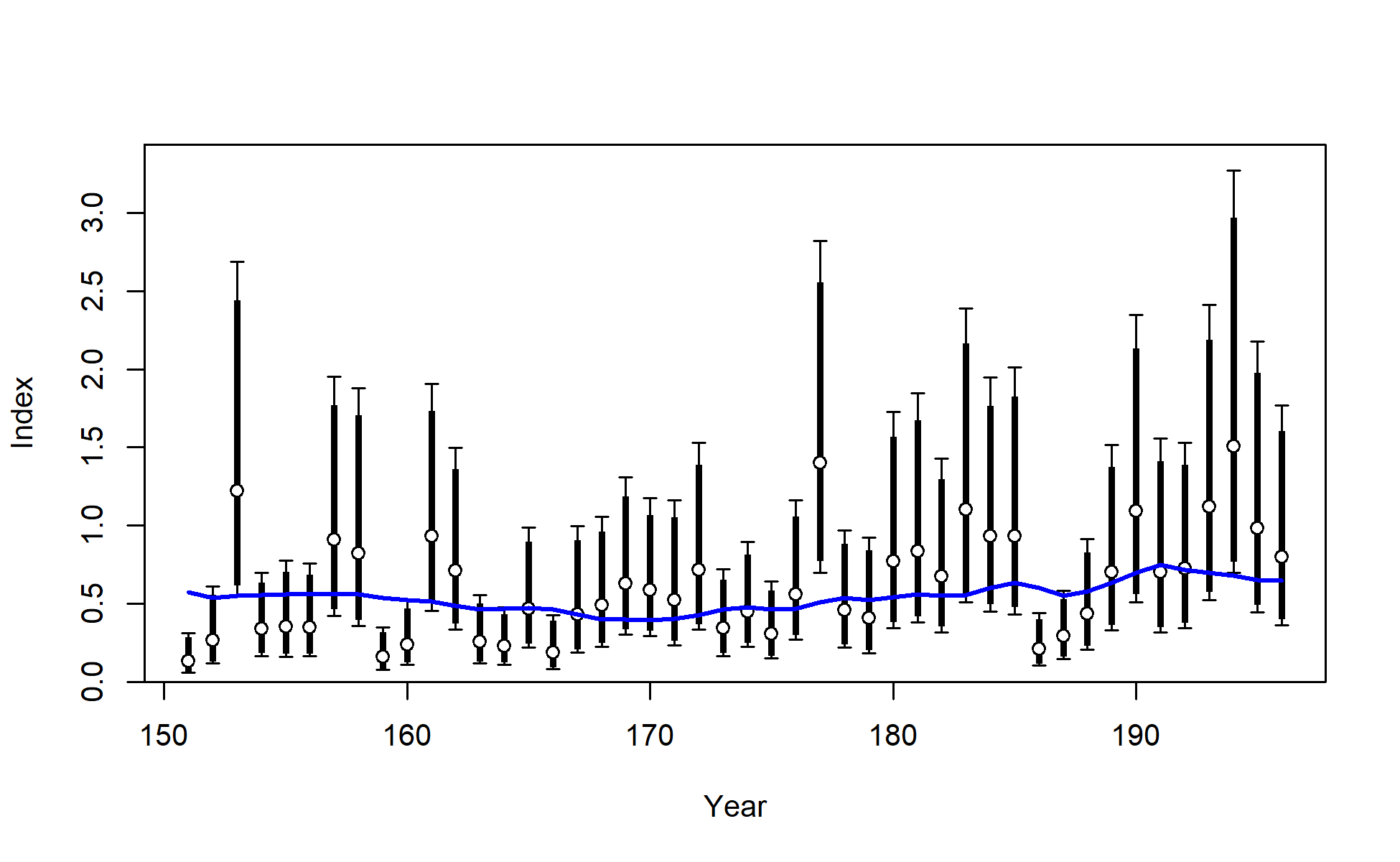

Fit to index data for S6_PS_Echo_east. Lines indicate 95% uncertainty interval around index values based on the model assumption of lognormal error. Thicker lines (if present) indicate input uncertainty before addition of estimated additional uncertainty parameter.
file: index2_cpuefit_S6_PS_Echo_east.png

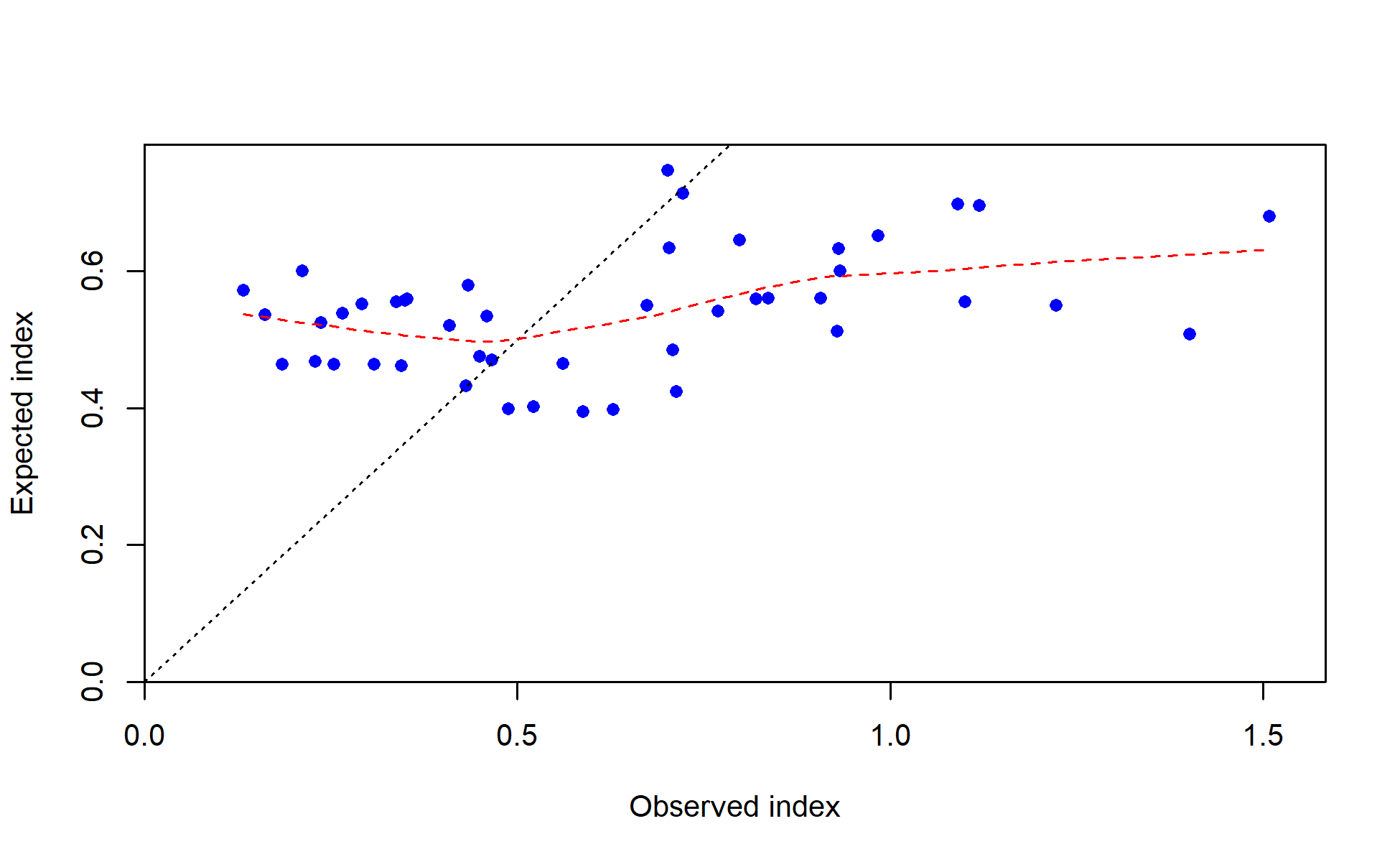

Observed vs. expected index values with smoother for S6_PS_Echo_east
file: index3_obs_vs_exp_S6_PS_Echo_east.png

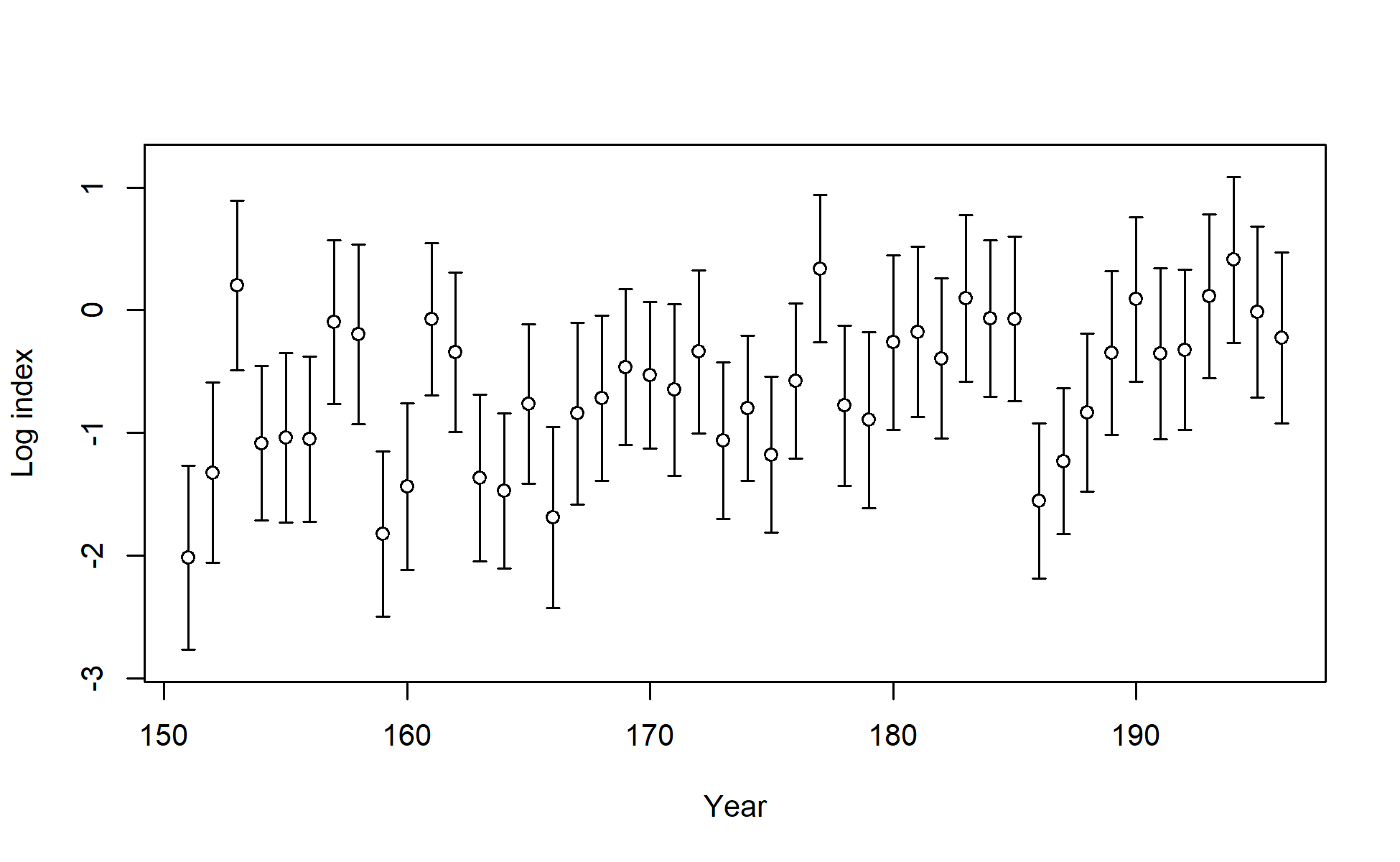

Log index data for S6_PS_Echo_east. Lines indicate 95% uncertainty interval around index values based on the model assumption of lognormal error. Thicker lines (if present) indicate input uncertainty before addition of estimated additional uncertainty parameter.
file: index4_logcpuedata_S6_PS_Echo_east.png

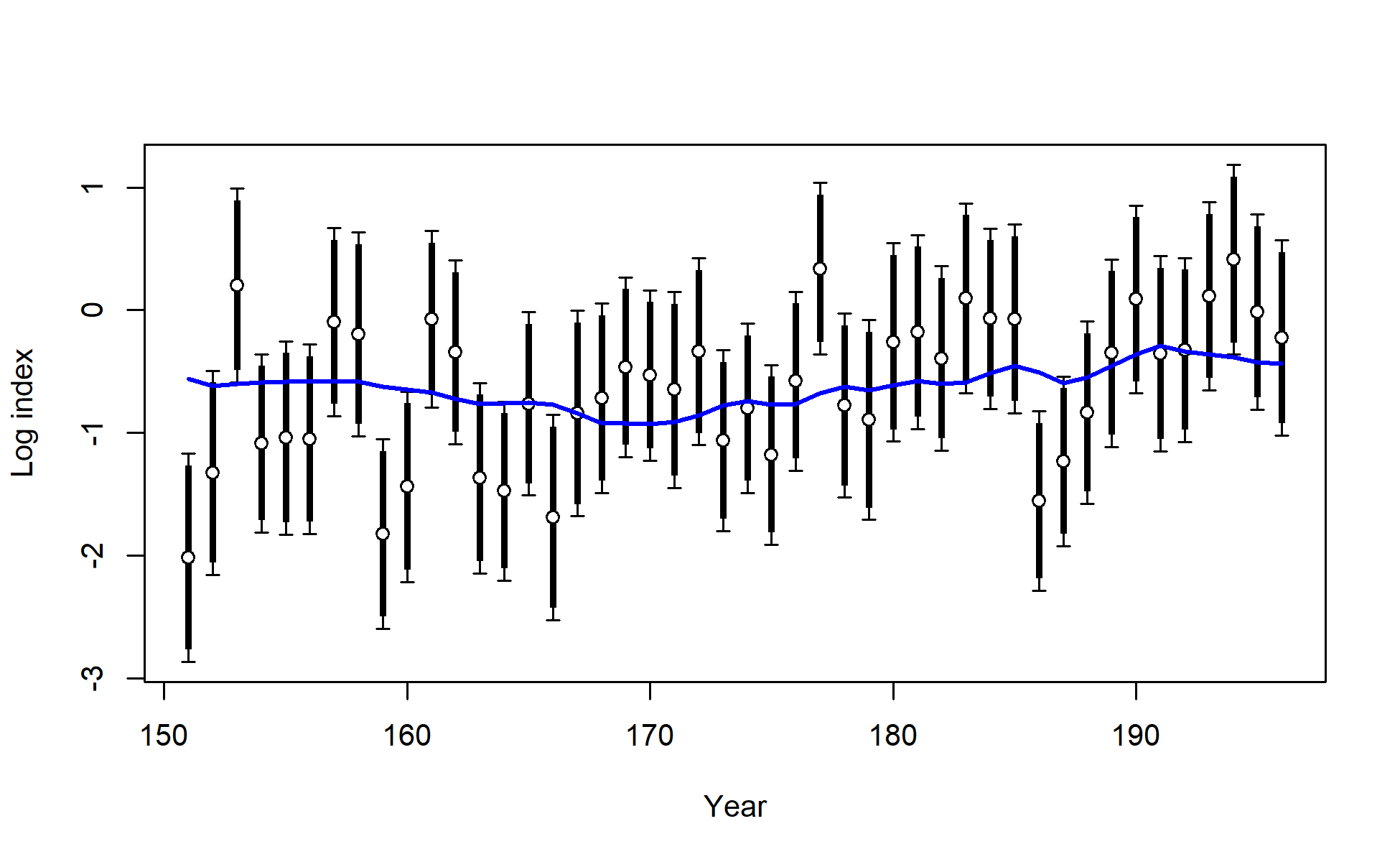

Fit to log index data on log scale for S6_PS_Echo_east. Lines indicate 95% uncertainty interval around index values based on the model assumption of lognormal error. Thicker lines (if present) indicate input uncertainty before addition of estimated additional uncertainty parameter.
file: index5_logcpuefit_S6_PS_Echo_east.png

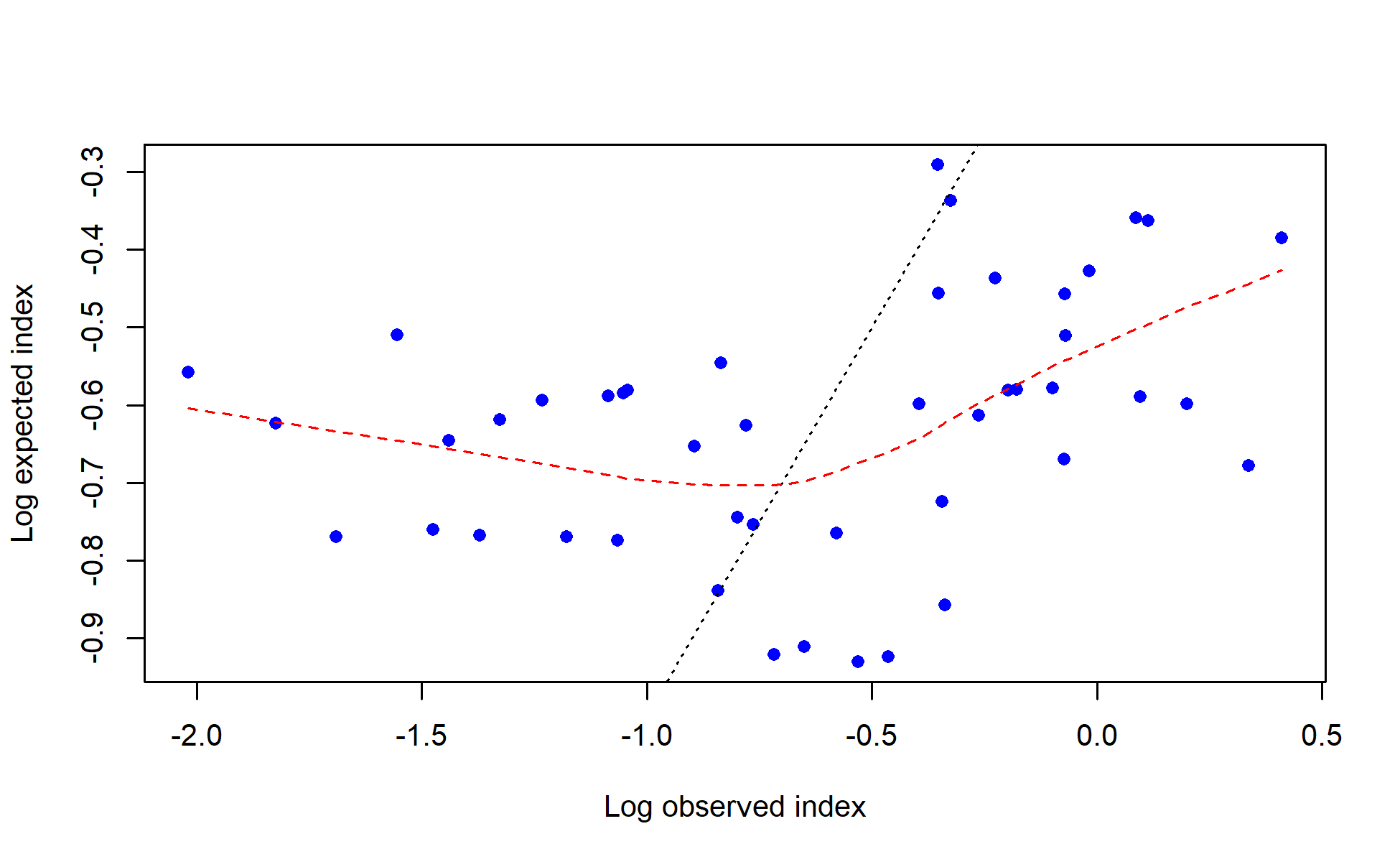

log(observed) vs. log(expected) index values with smoother for S6_PS_Echo_east
file: index6_log_obs_vs_exp_S6_PS_Echo_east.png

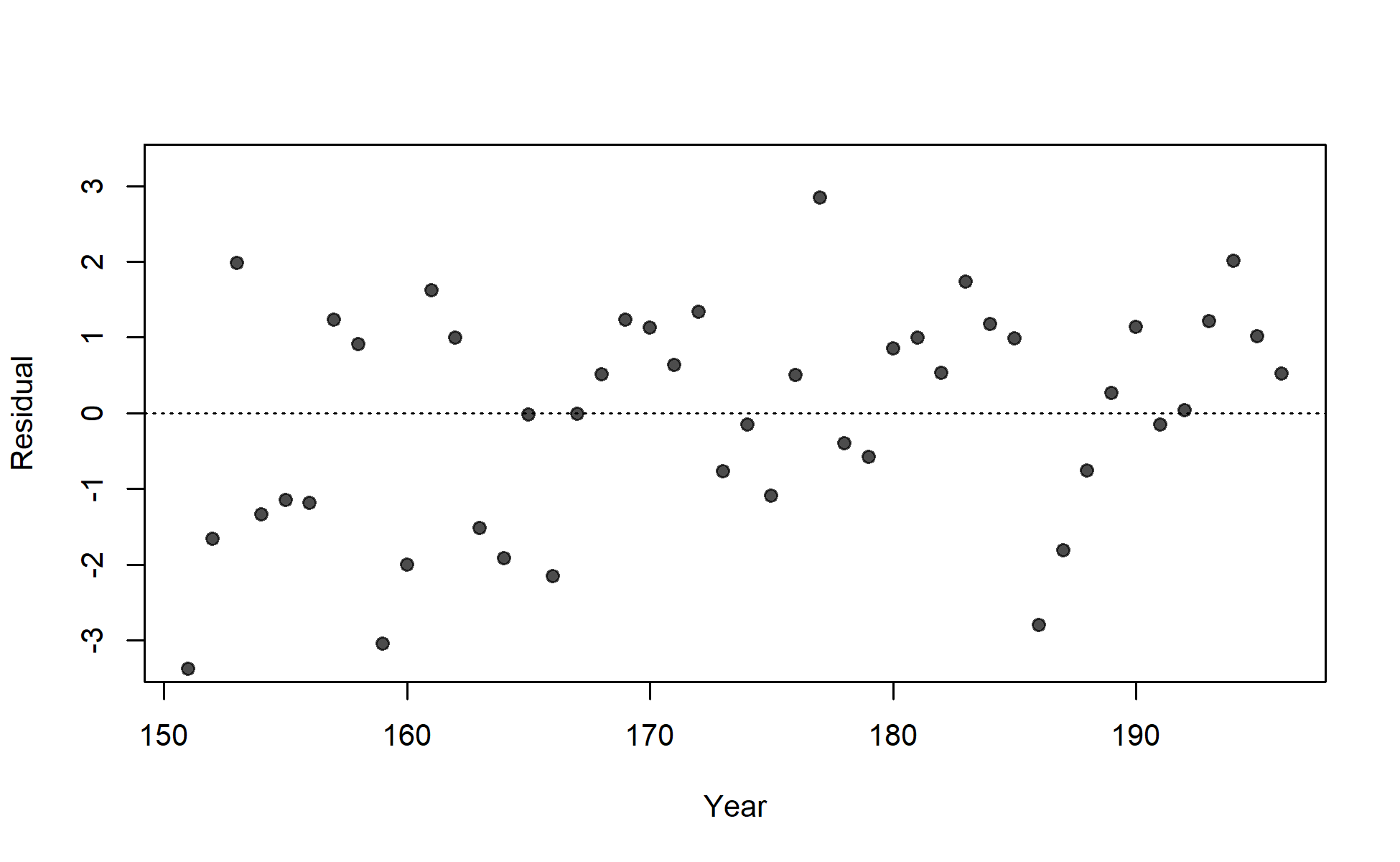

Residuals of fit to index for S6_PS_Echo_east.
Values are (log(Obs) - log(Exp))/SE where SE is the total standard error including any estimated additional uncertainty.
file: index10_resids_SE_total_S6_PS_Echo_east.png

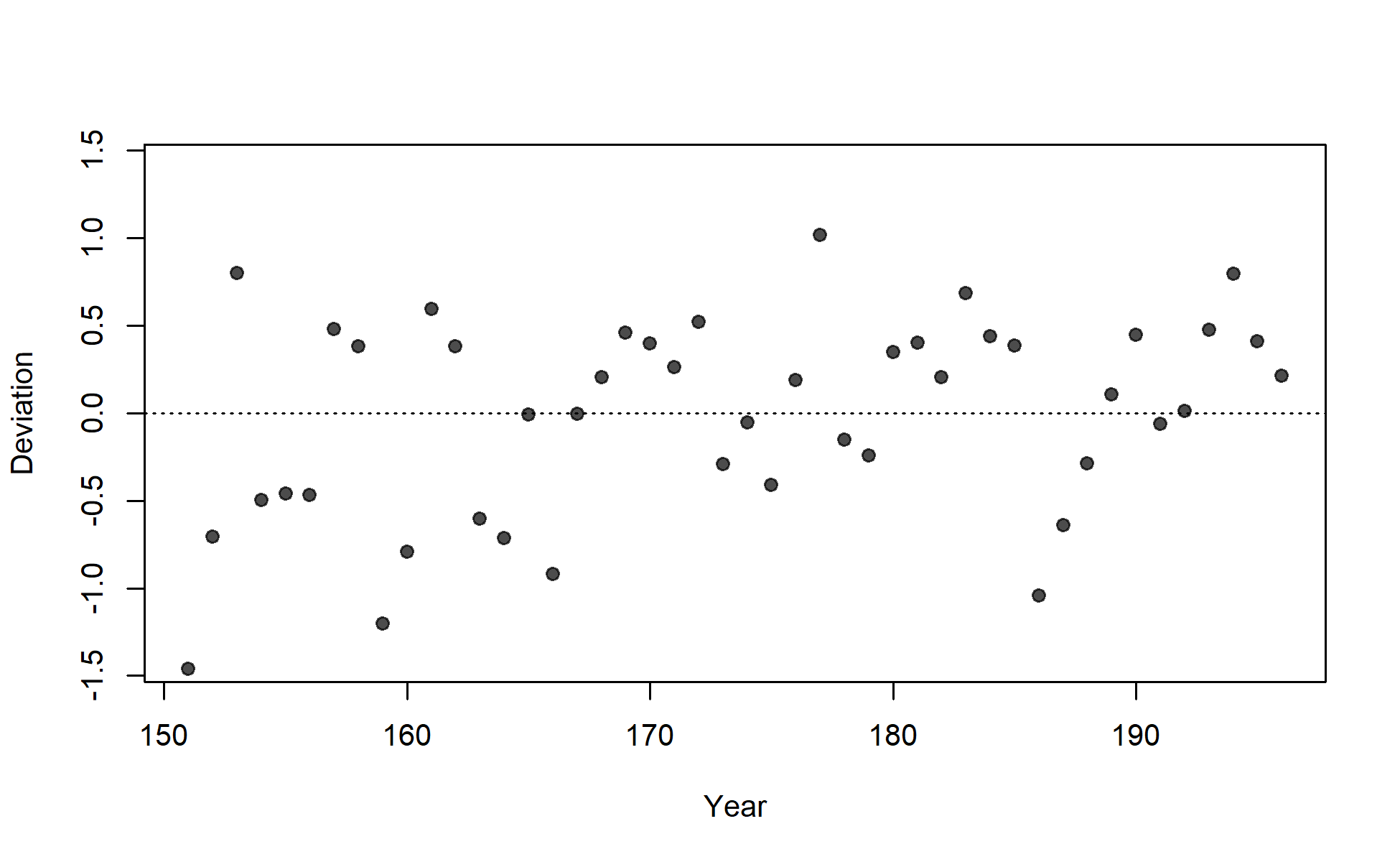

Deviations for fit to index for S6_PS_Echo_east.
Values are log(Obs) - log(Exp) and thus independent of index uncertainty.
file: index12_resids_SE_total_S6_PS_Echo_east.png

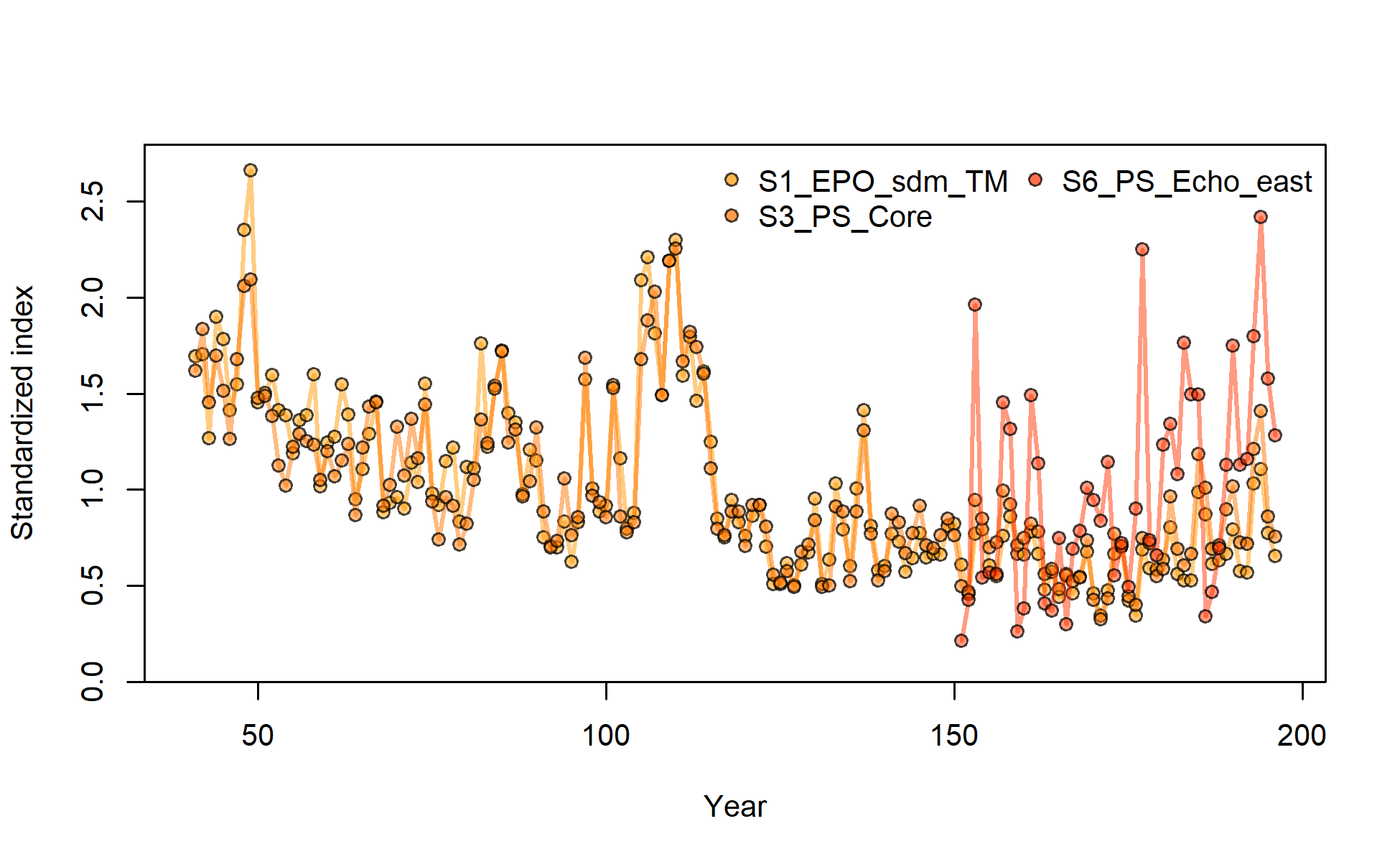

Standardized indices overlaid. Each index is rescaled to have mean observation = 1.0.
file: index9_standcpueall.png
