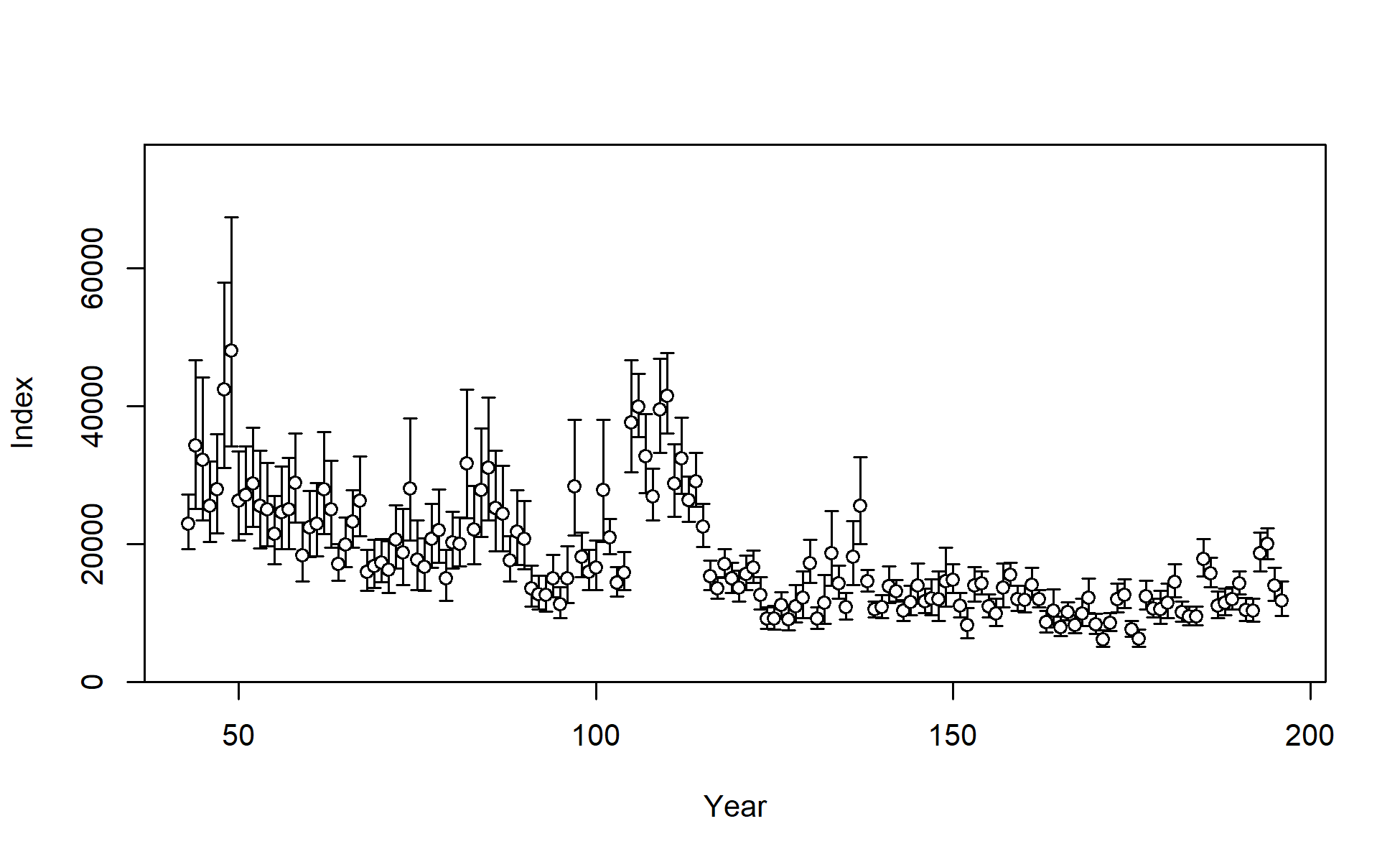

Index data for S1_EPO_sdm_TM. Lines indicate 95% uncertainty interval around index values based on the model assumption of lognormal error. Thicker lines (if present) indicate input uncertainty before addition of estimated additional uncertainty parameter.
file: index1_cpuedata_S1_EPO_sdm_TM.png

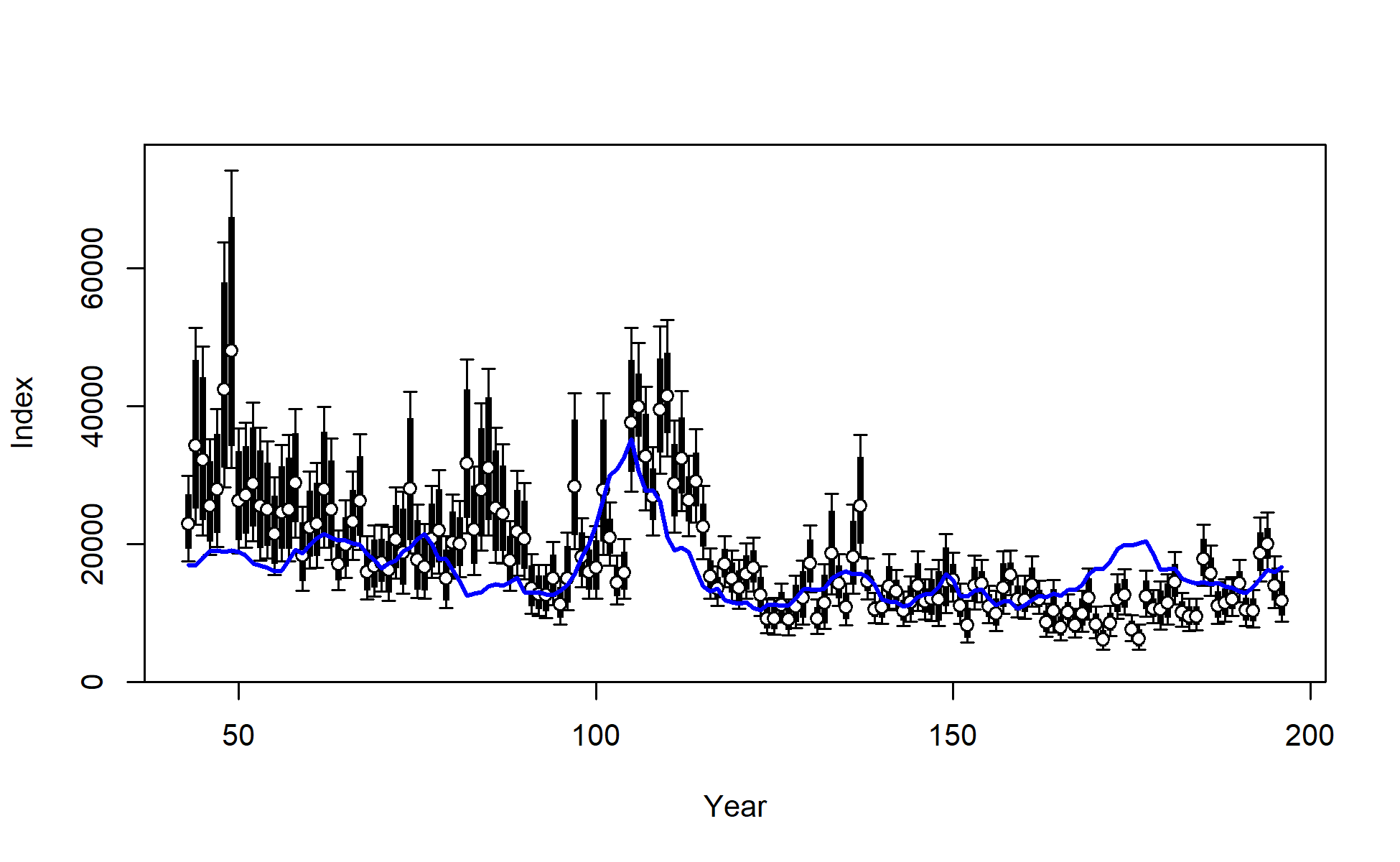

Fit to index data for S1_EPO_sdm_TM. Lines indicate 95% uncertainty interval around index values based on the model assumption of lognormal error. Thicker lines (if present) indicate input uncertainty before addition of estimated additional uncertainty parameter.
file: index2_cpuefit_S1_EPO_sdm_TM.png

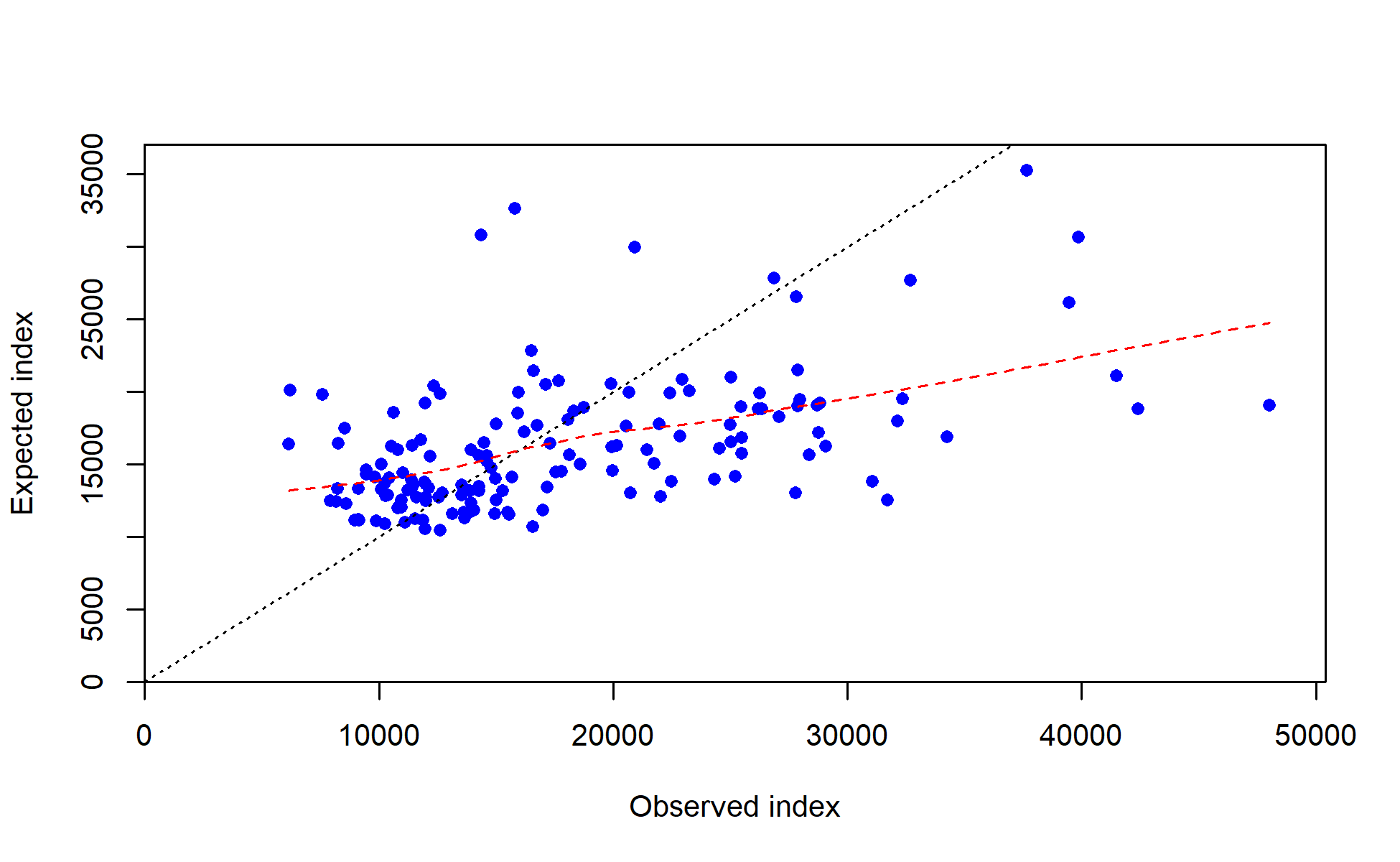

Observed vs. expected index values with smoother for S1_EPO_sdm_TM
file: index3_obs_vs_exp_S1_EPO_sdm_TM.png

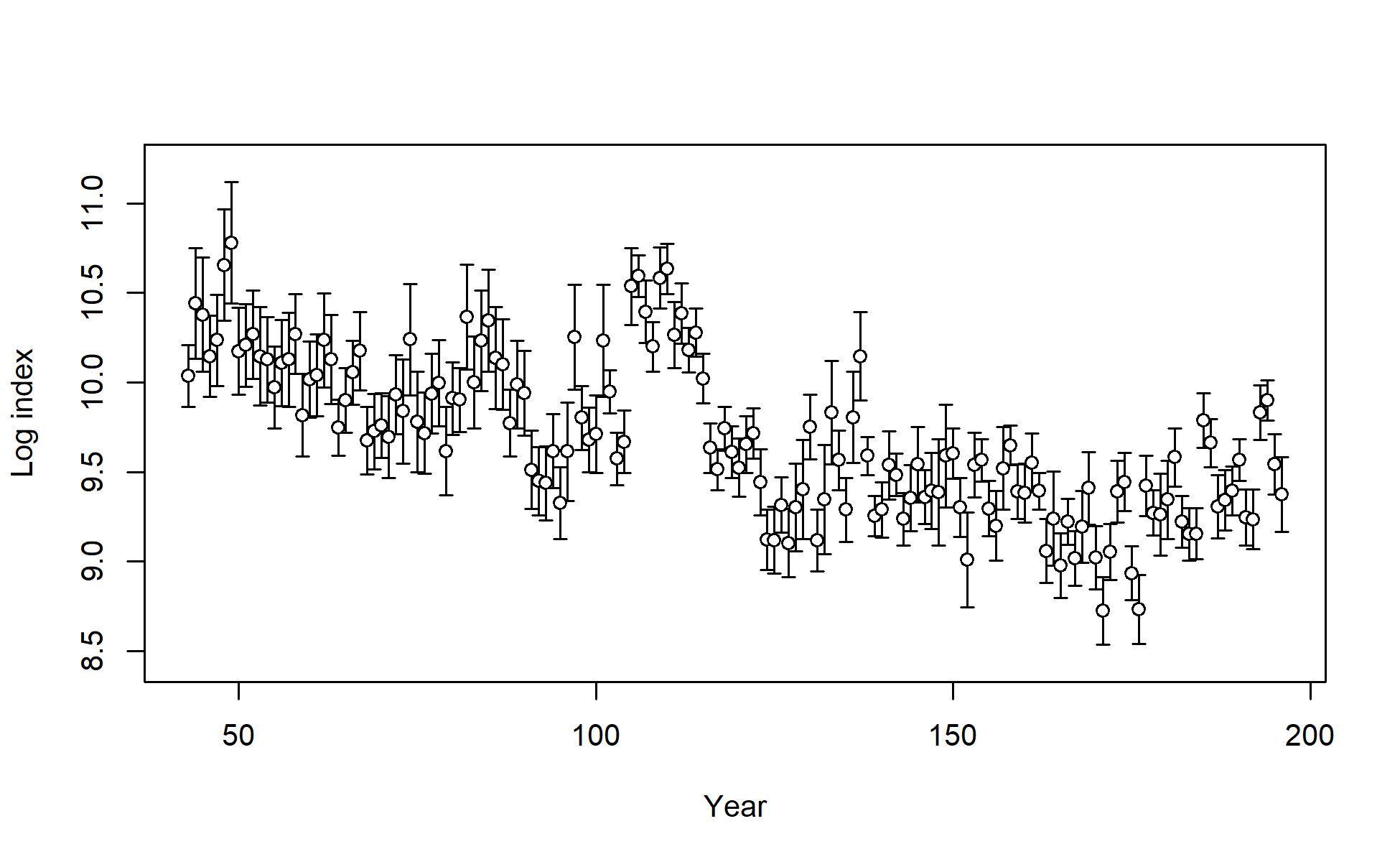

Log index data for S1_EPO_sdm_TM. Lines indicate 95% uncertainty interval around index values based on the model assumption of lognormal error. Thicker lines (if present) indicate input uncertainty before addition of estimated additional uncertainty parameter.
file: index4_logcpuedata_S1_EPO_sdm_TM.png

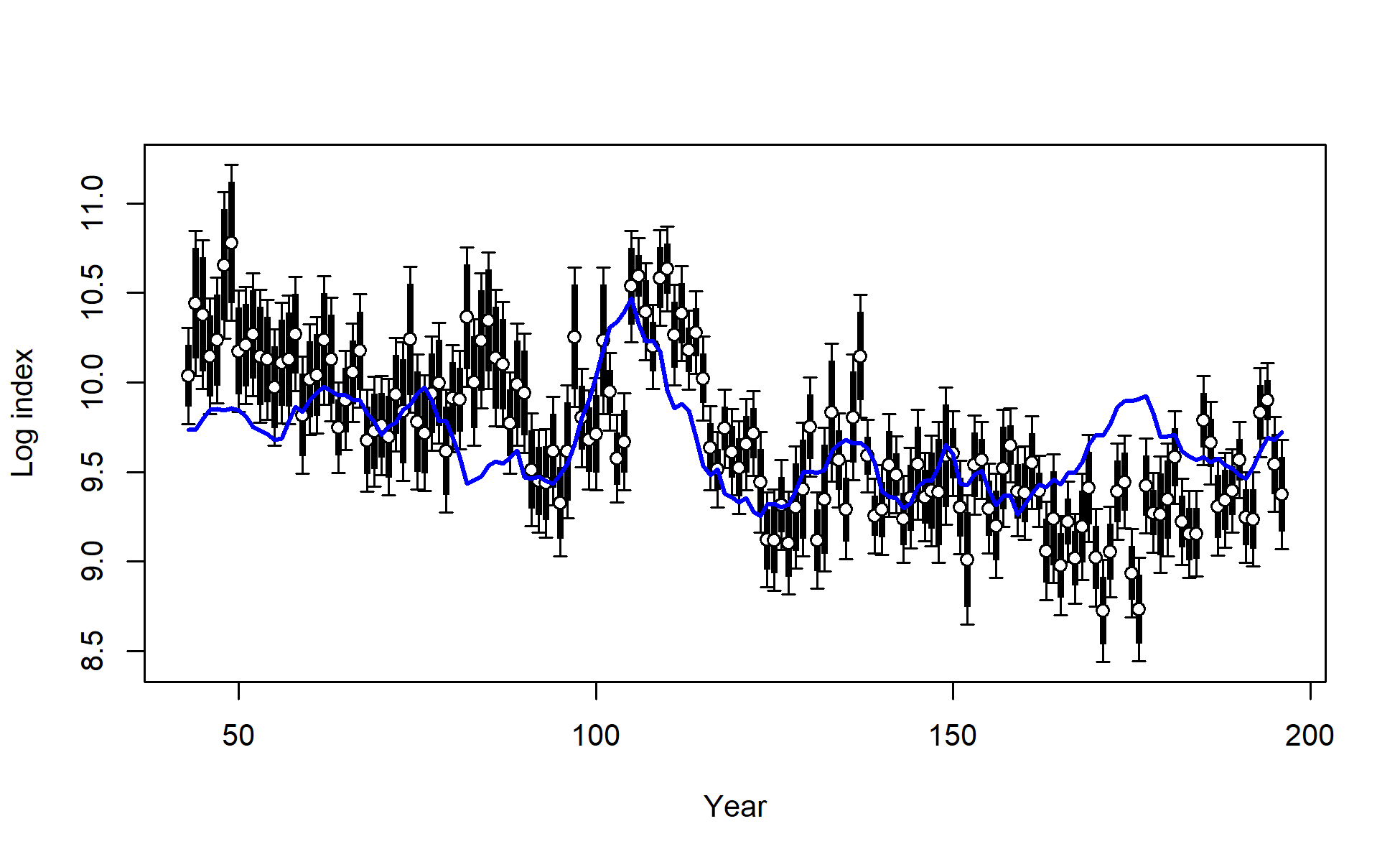

Fit to log index data on log scale for S1_EPO_sdm_TM. Lines indicate 95% uncertainty interval around index values based on the model assumption of lognormal error. Thicker lines (if present) indicate input uncertainty before addition of estimated additional uncertainty parameter.
file: index5_logcpuefit_S1_EPO_sdm_TM.png

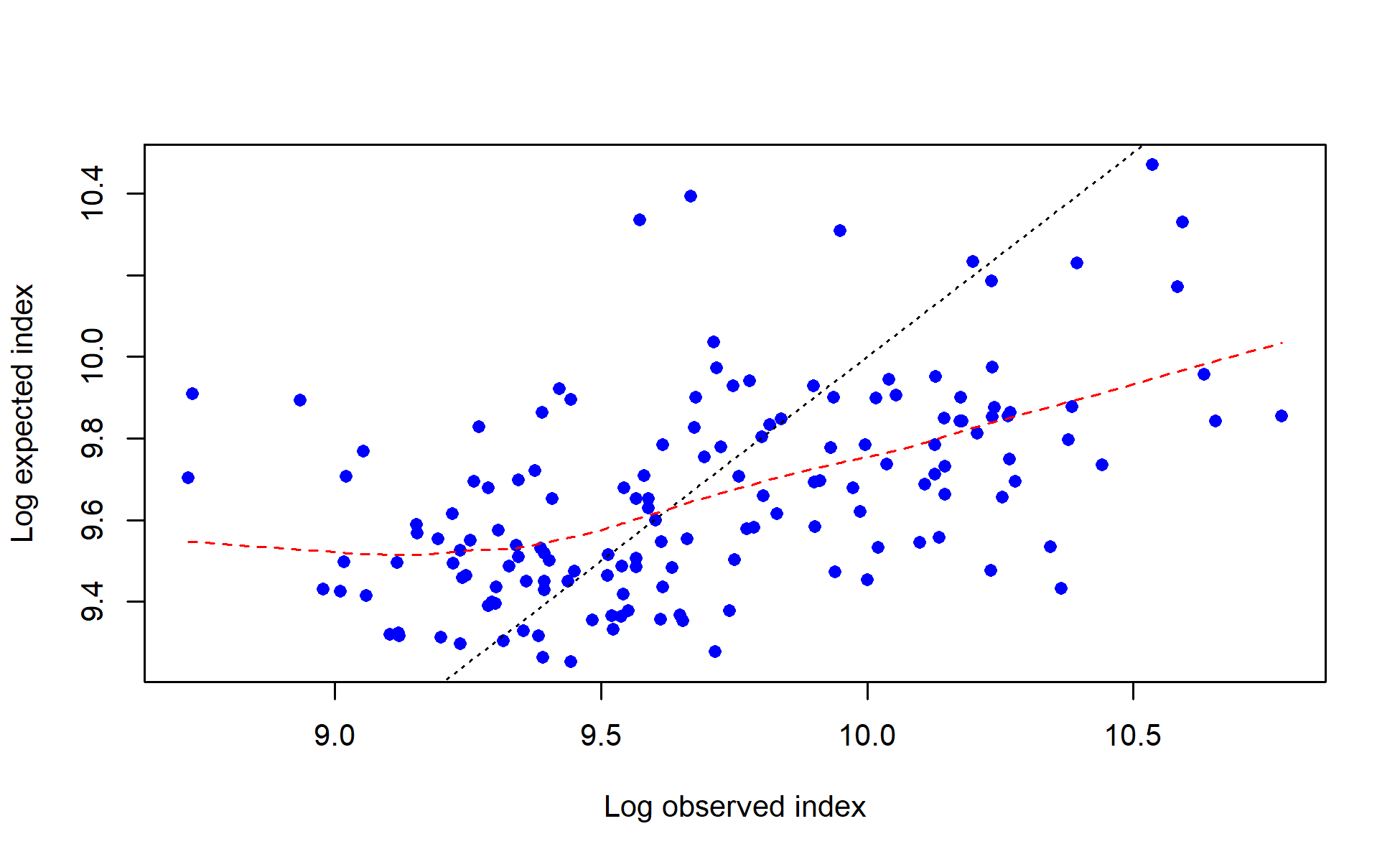

log(observed) vs. log(expected) index values with smoother for S1_EPO_sdm_TM
file: index6_log_obs_vs_exp_S1_EPO_sdm_TM.png
Residuals of fit to index for S1_EPO_sdm_TM.
Values are (log(Obs) - log(Exp))/SE where SE is the total standard error including any estimated additional uncertainty.
file: index10_resids_SE_total_S1_EPO_sdm_TM.png

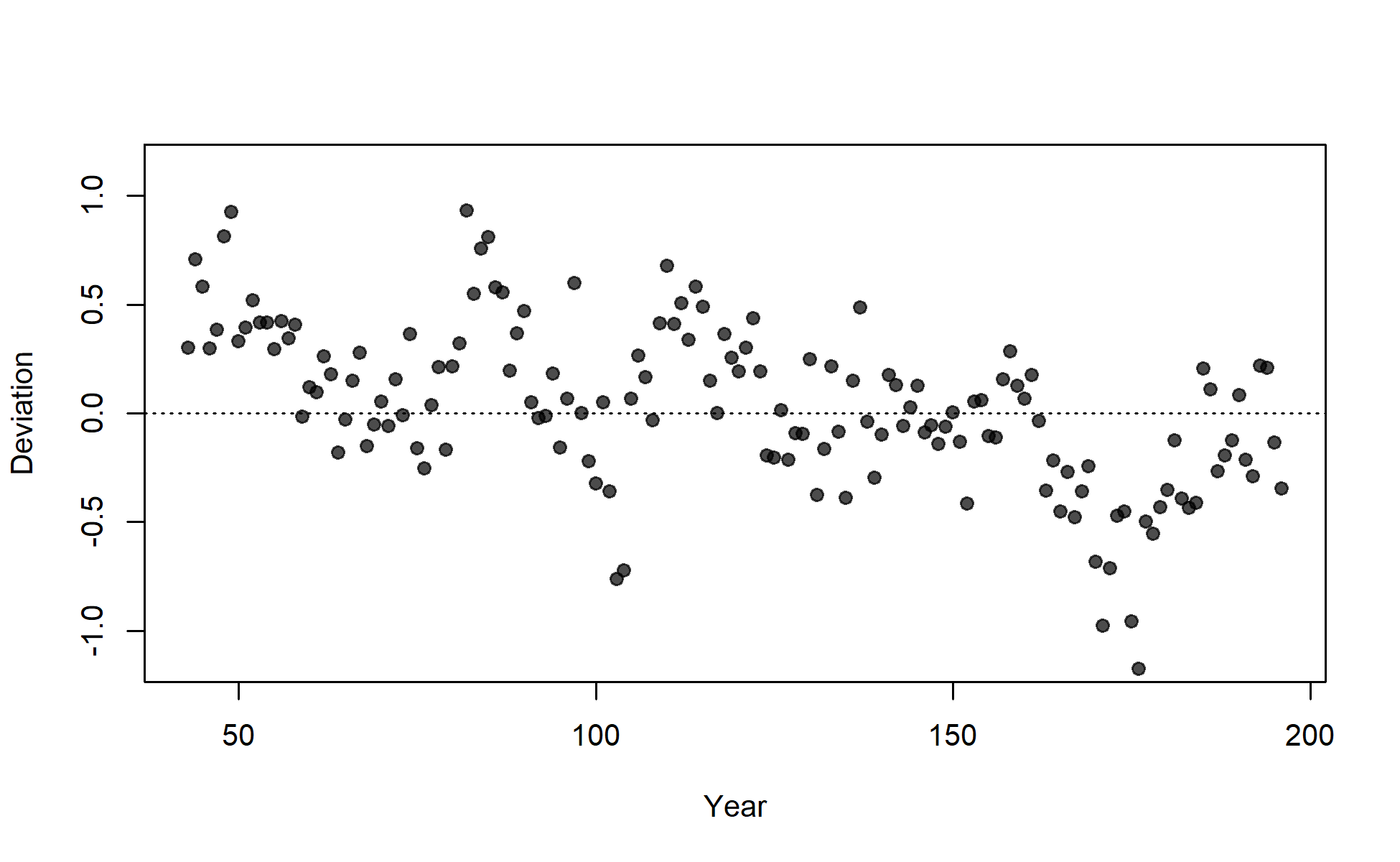

Deviations for fit to index for S1_EPO_sdm_TM.
Values are log(Obs) - log(Exp) and thus independent of index uncertainty.
file: index12_resids_SE_total_S1_EPO_sdm_TM.png

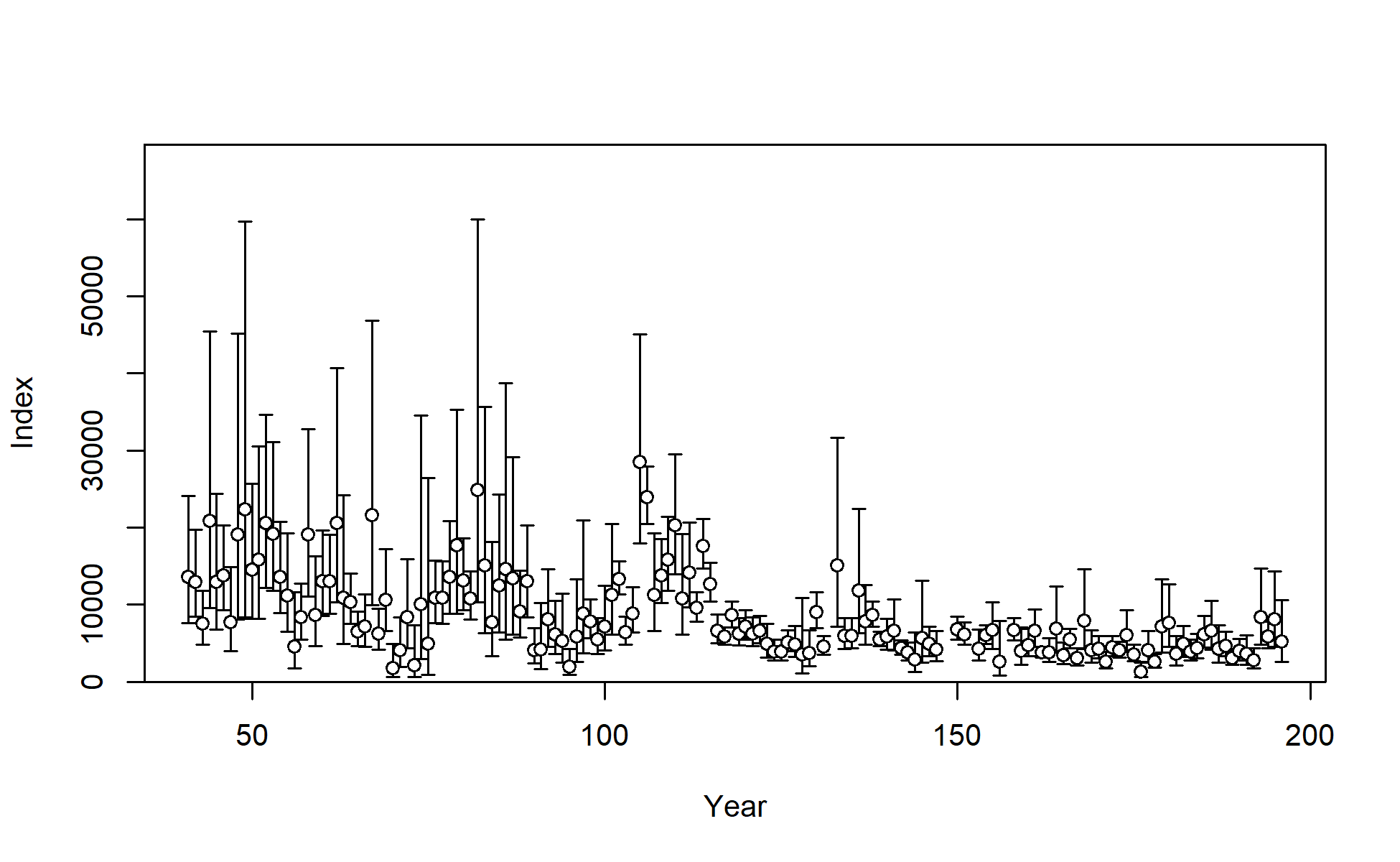

Index data for S4_PS_Offshore. Lines indicate 95% uncertainty interval around index values based on the model assumption of lognormal error. Thicker lines (if present) indicate input uncertainty before addition of estimated additional uncertainty parameter.
file: index1_cpuedata_S4_PS_Offshore.png

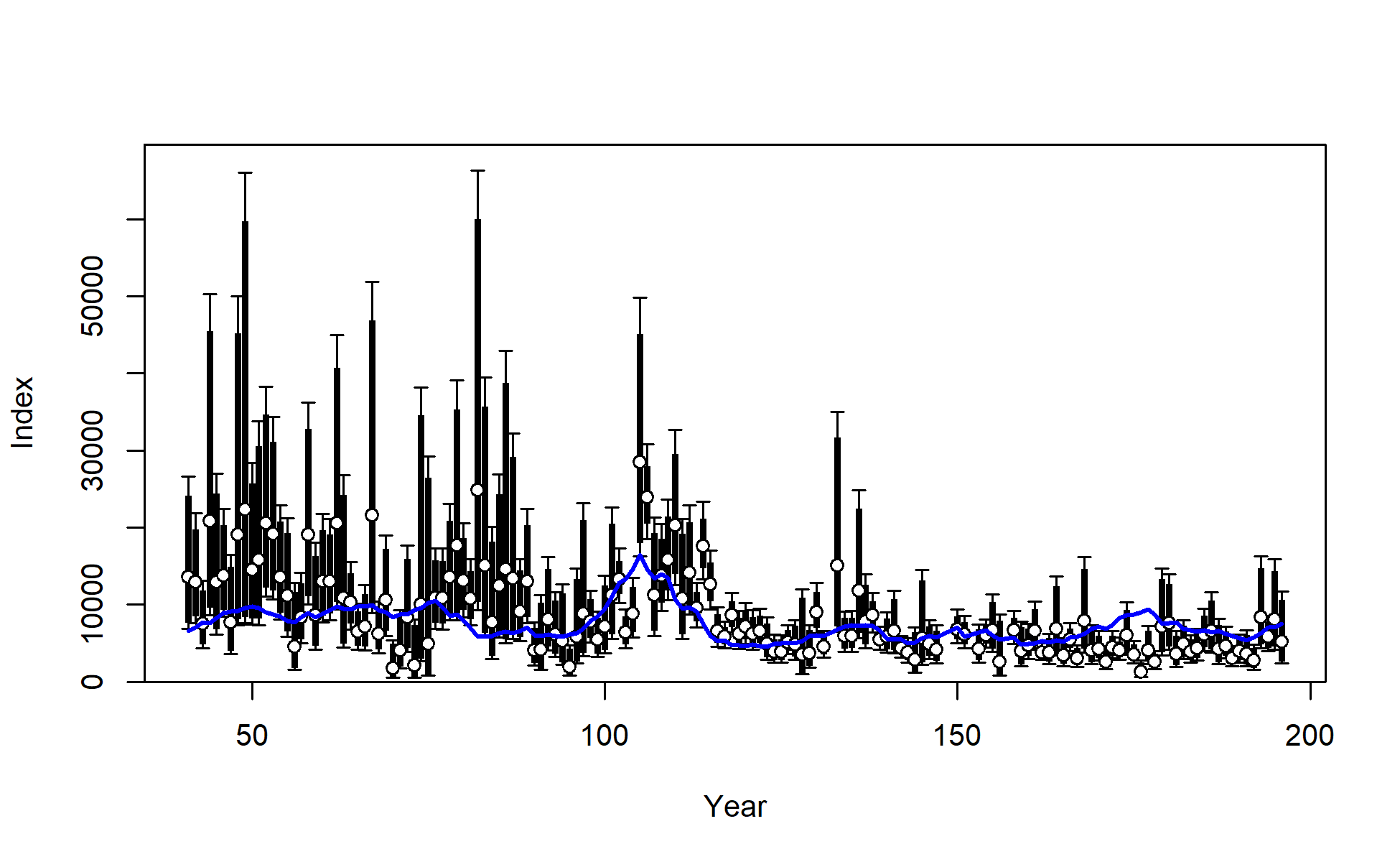

Fit to index data for S4_PS_Offshore. Lines indicate 95% uncertainty interval around index values based on the model assumption of lognormal error. Thicker lines (if present) indicate input uncertainty before addition of estimated additional uncertainty parameter.
file: index2_cpuefit_S4_PS_Offshore.png

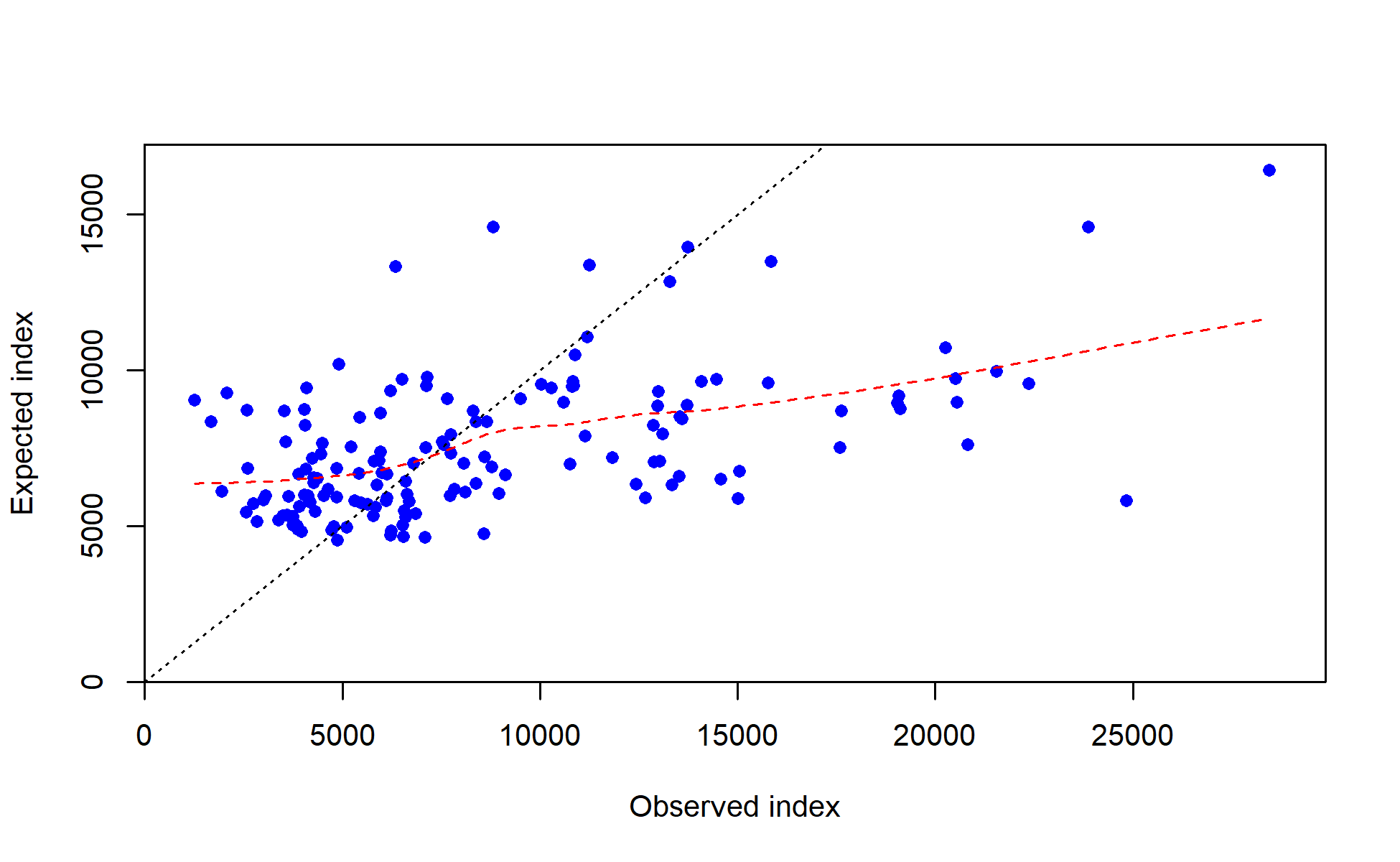

Observed vs. expected index values with smoother for S4_PS_Offshore
file: index3_obs_vs_exp_S4_PS_Offshore.png

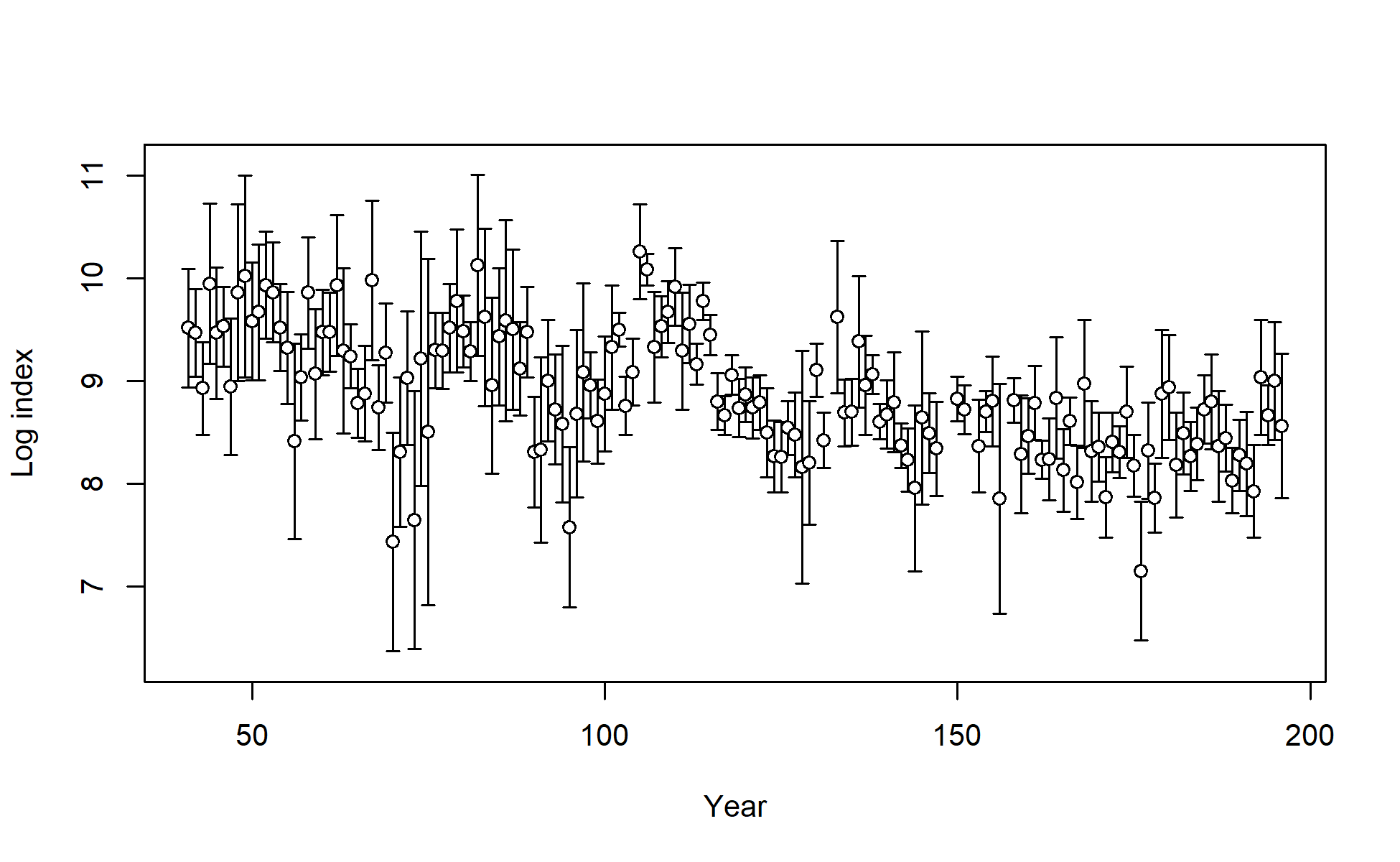

Log index data for S4_PS_Offshore. Lines indicate 95% uncertainty interval around index values based on the model assumption of lognormal error. Thicker lines (if present) indicate input uncertainty before addition of estimated additional uncertainty parameter.
file: index4_logcpuedata_S4_PS_Offshore.png

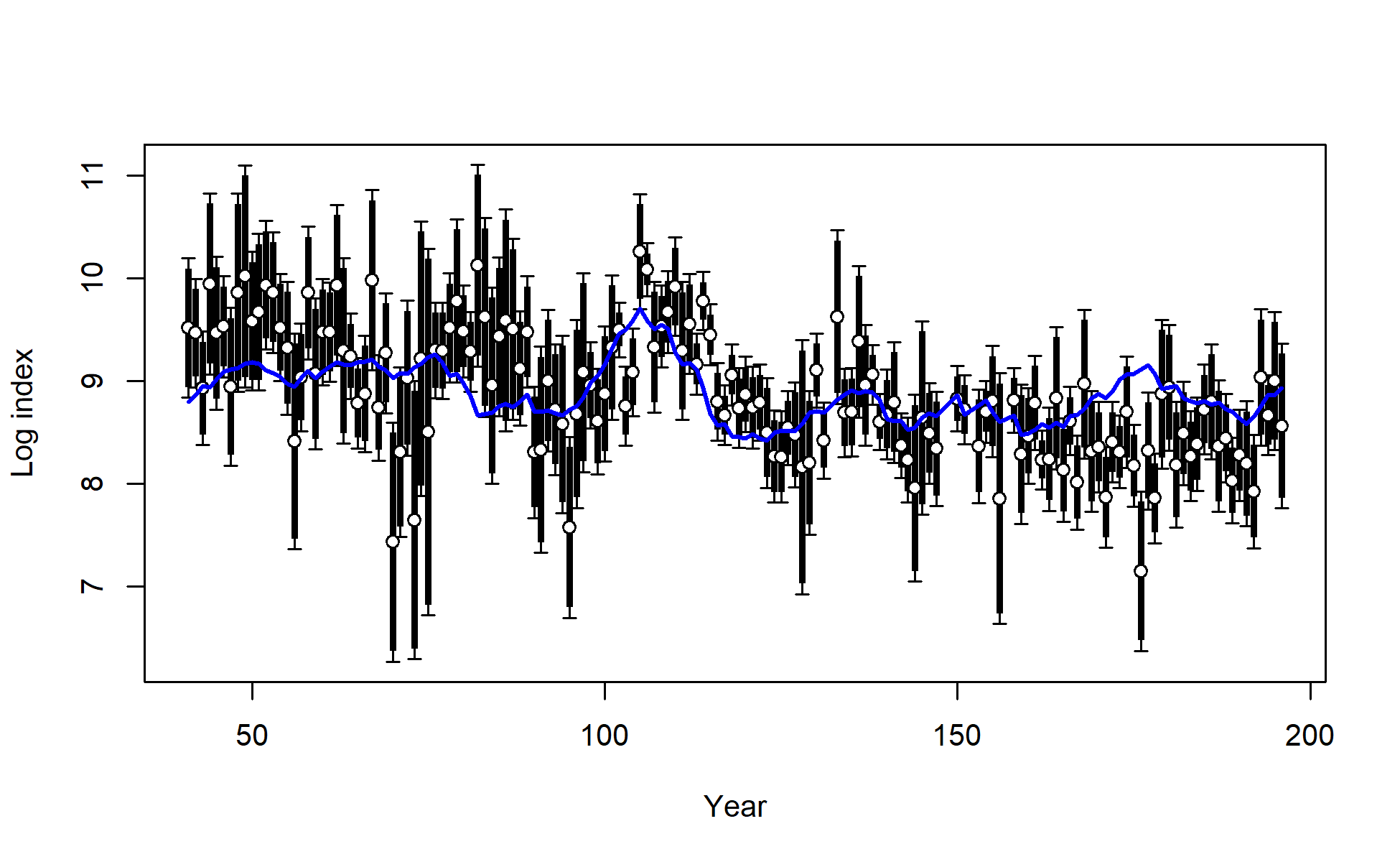

Fit to log index data on log scale for S4_PS_Offshore. Lines indicate 95% uncertainty interval around index values based on the model assumption of lognormal error. Thicker lines (if present) indicate input uncertainty before addition of estimated additional uncertainty parameter.
file: index5_logcpuefit_S4_PS_Offshore.png

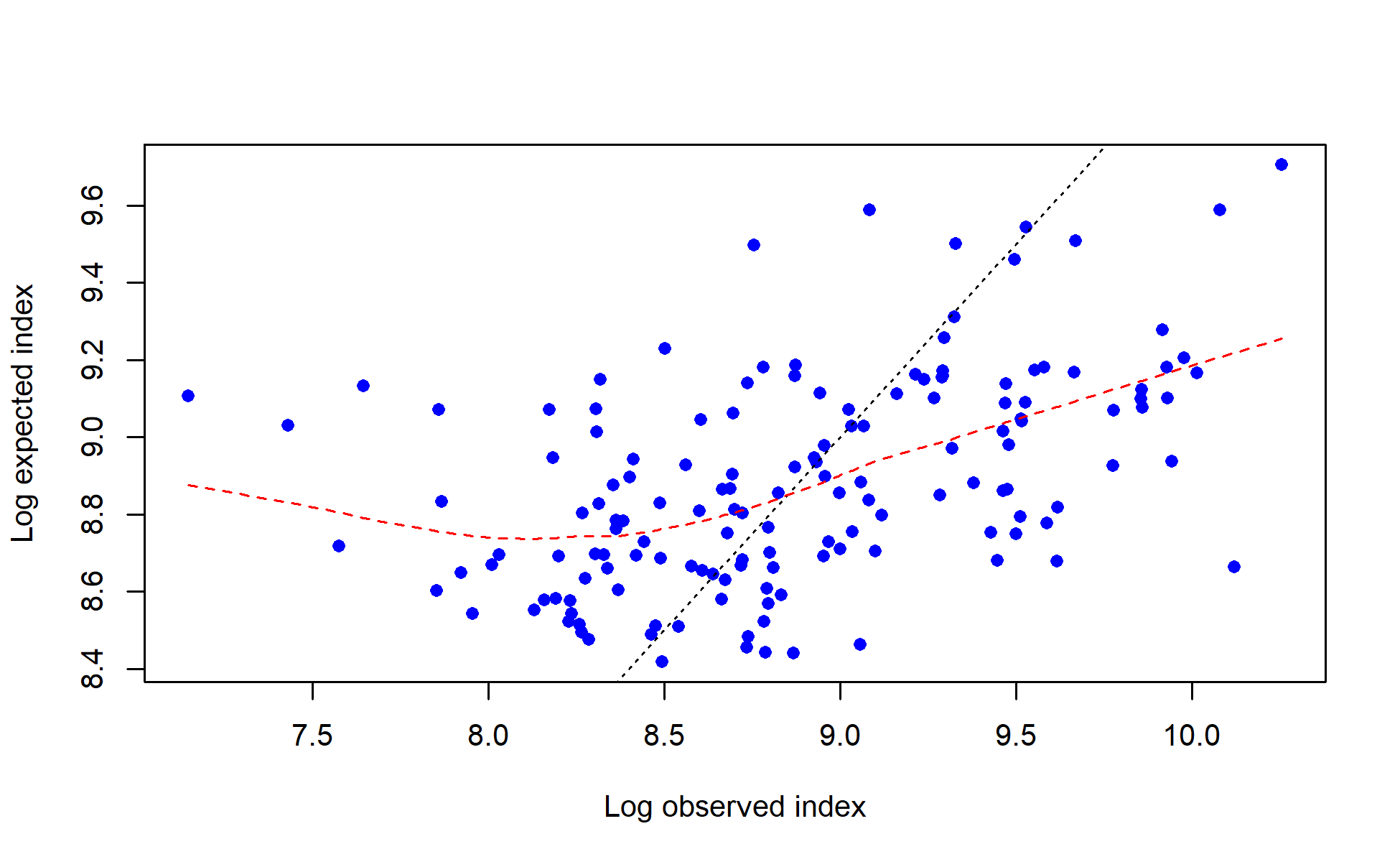

log(observed) vs. log(expected) index values with smoother for S4_PS_Offshore
file: index6_log_obs_vs_exp_S4_PS_Offshore.png

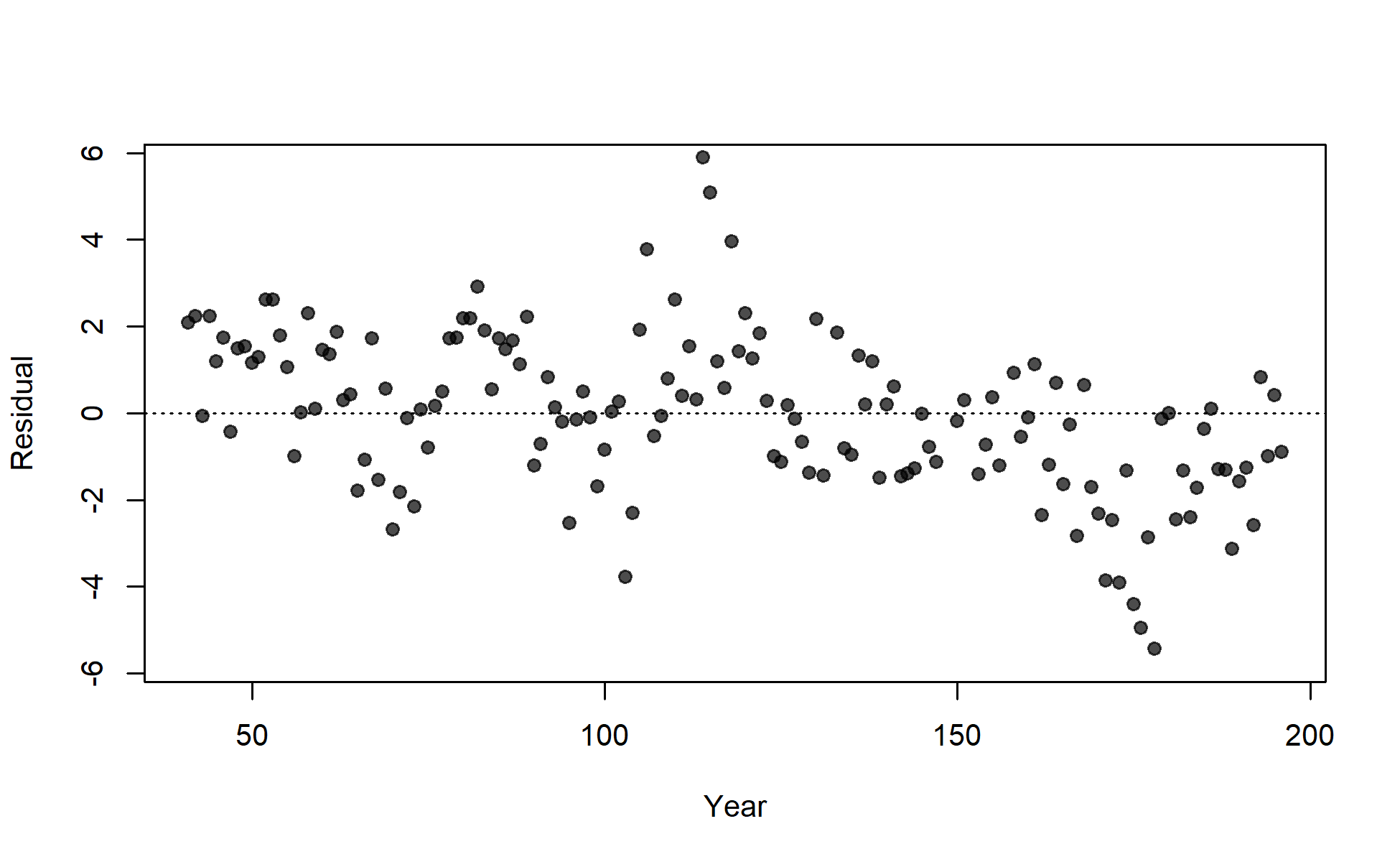

Residuals of fit to index for S4_PS_Offshore.
Values are (log(Obs) - log(Exp))/SE where SE is the total standard error including any estimated additional uncertainty.
file: index10_resids_SE_total_S4_PS_Offshore.png

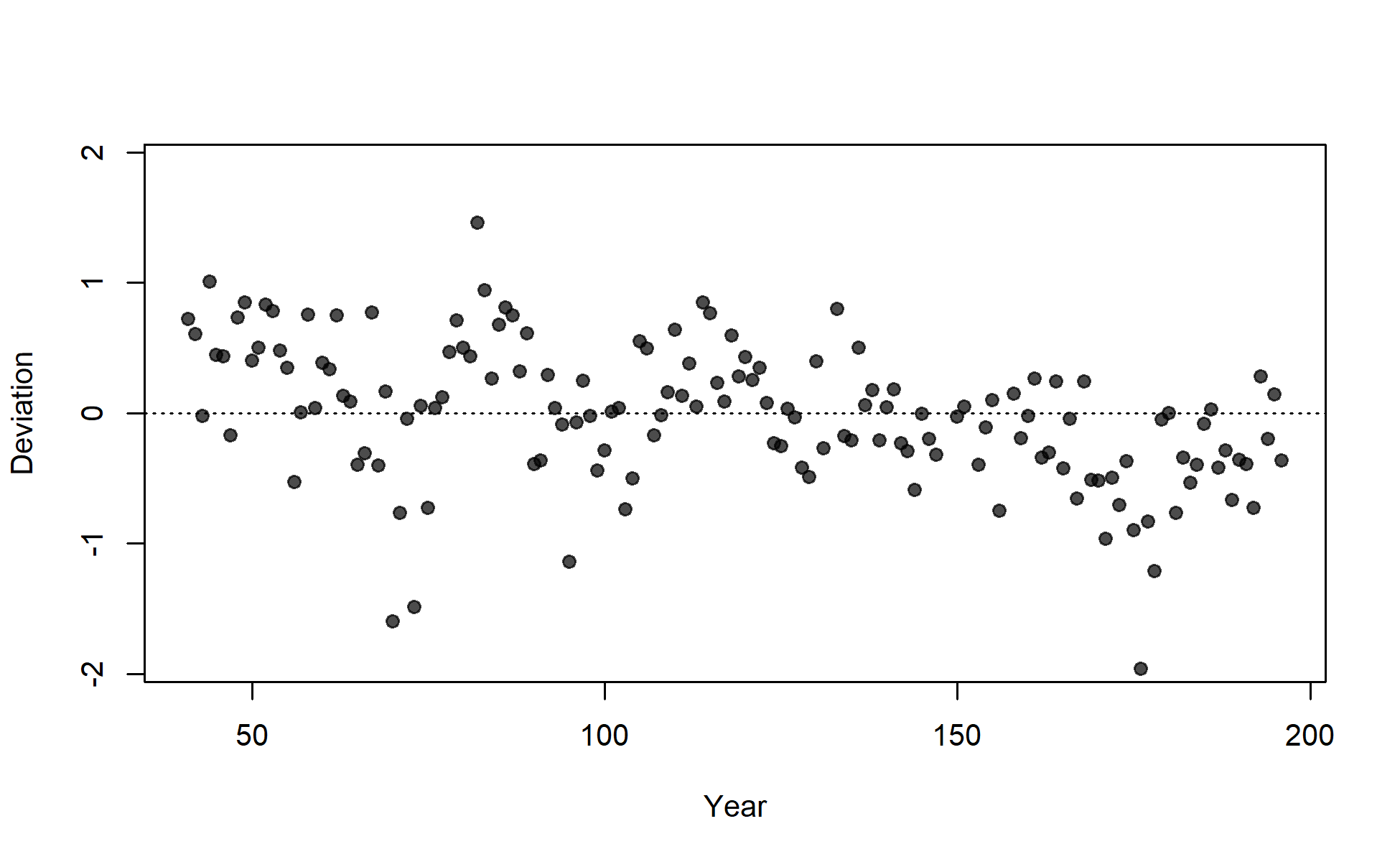

Deviations for fit to index for S4_PS_Offshore.
Values are log(Obs) - log(Exp) and thus independent of index uncertainty.
file: index12_resids_SE_total_S4_PS_Offshore.png

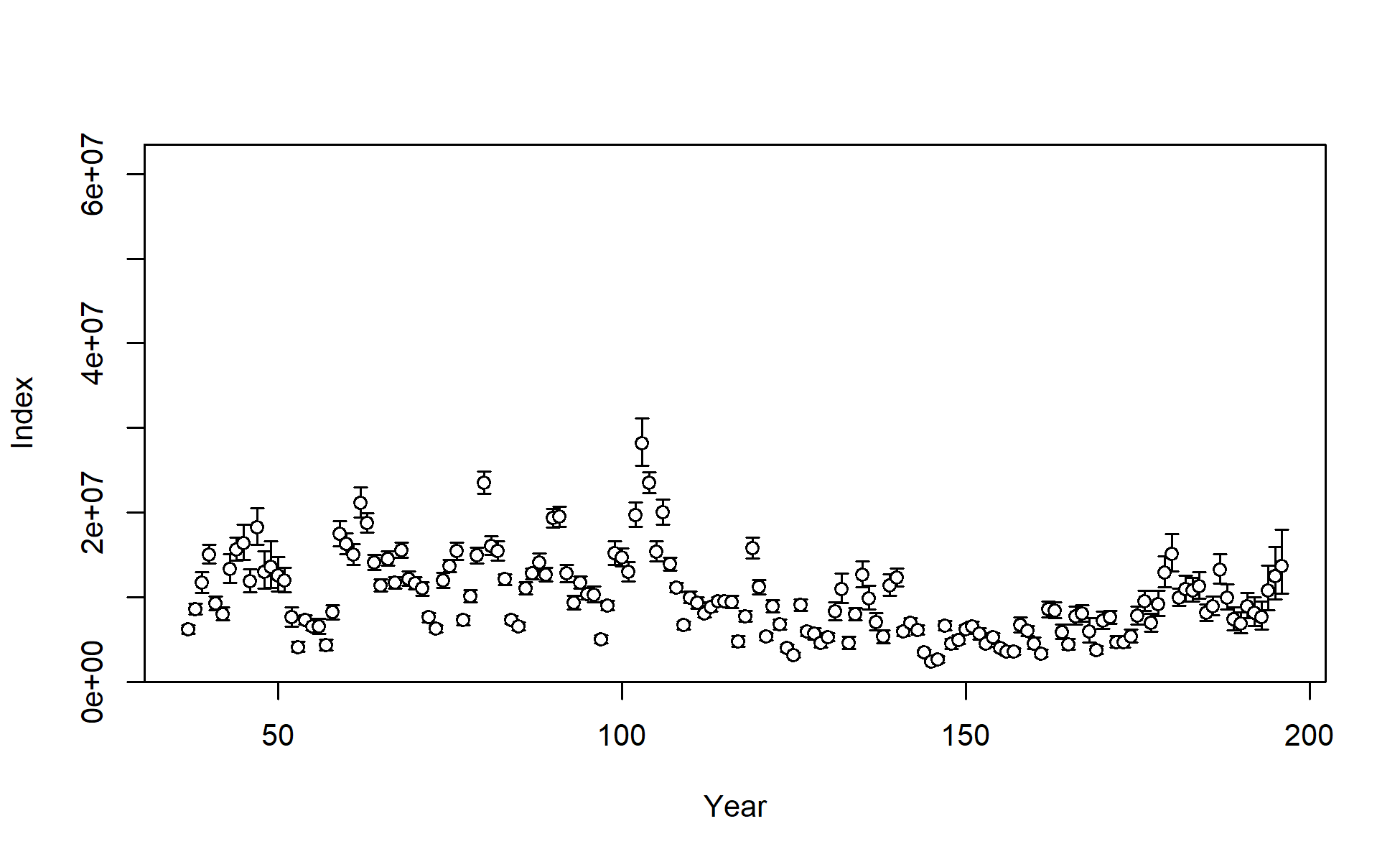

Index data for S5_LL_Offshore. Lines indicate 95% uncertainty interval around index values based on the model assumption of lognormal error. Thicker lines (if present) indicate input uncertainty before addition of estimated additional uncertainty parameter.
file: index1_cpuedata_S5_LL_Offshore.png

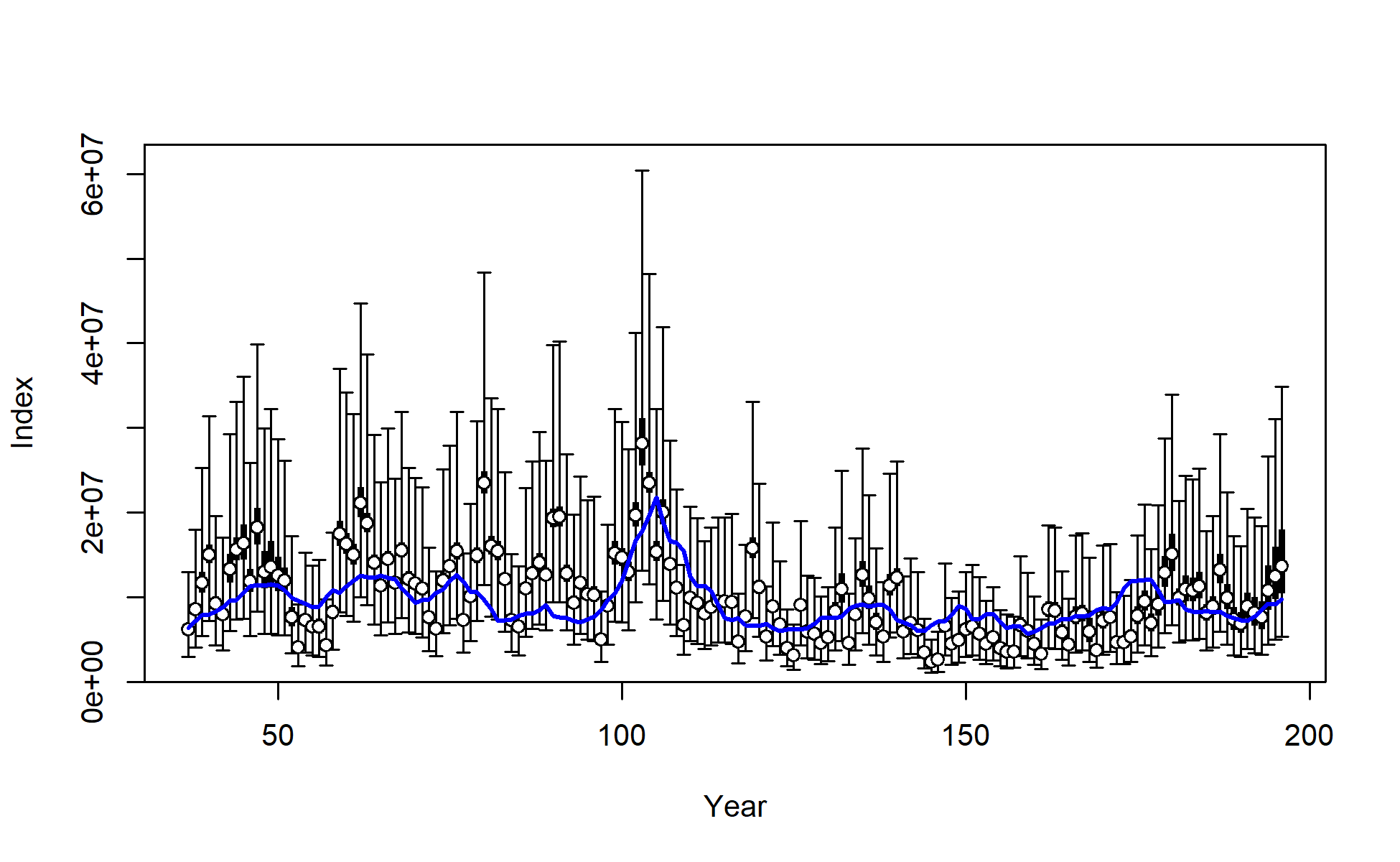

Fit to index data for S5_LL_Offshore. Lines indicate 95% uncertainty interval around index values based on the model assumption of lognormal error. Thicker lines (if present) indicate input uncertainty before addition of estimated additional uncertainty parameter.
file: index2_cpuefit_S5_LL_Offshore.png

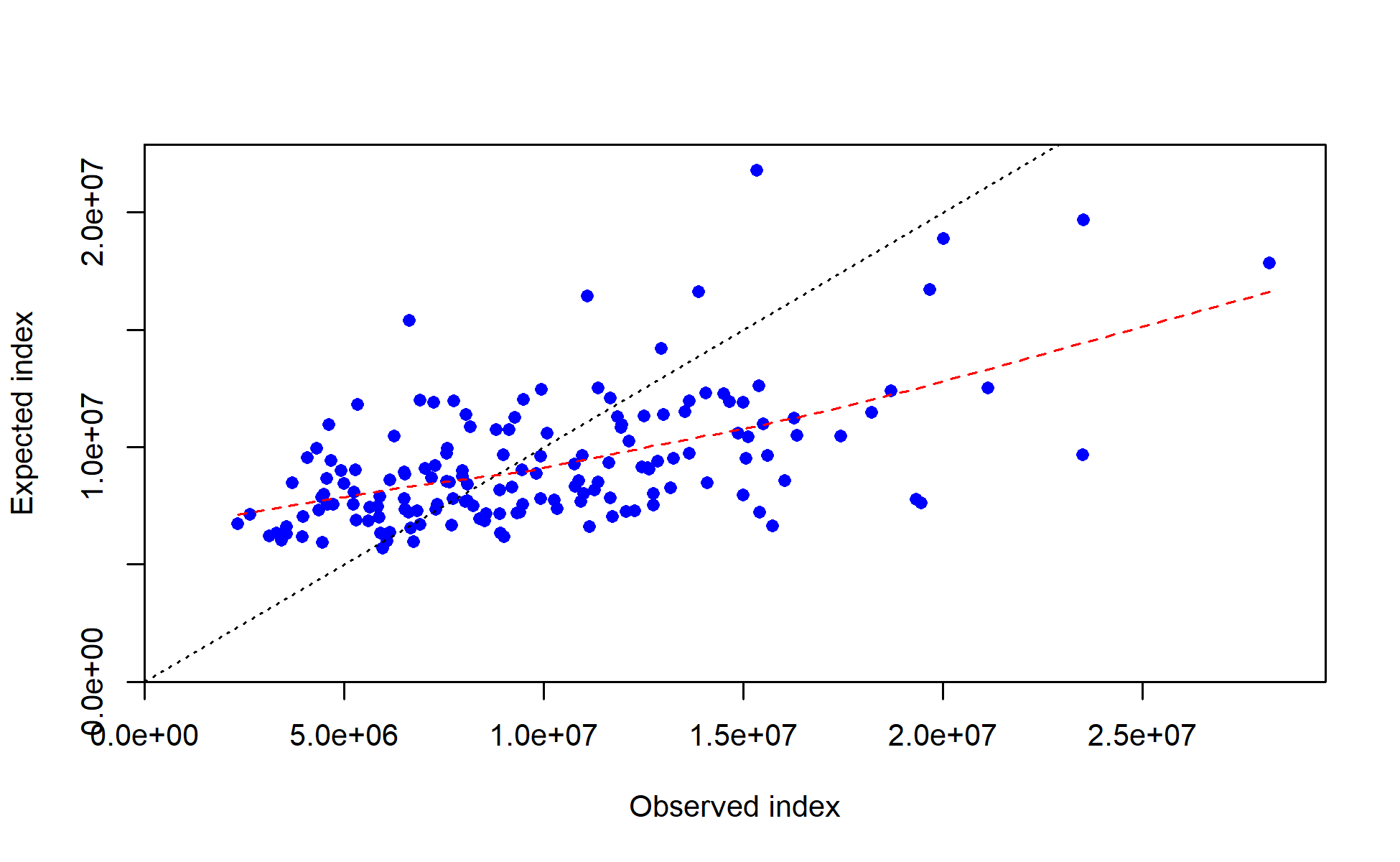

Observed vs. expected index values with smoother for S5_LL_Offshore
file: index3_obs_vs_exp_S5_LL_Offshore.png

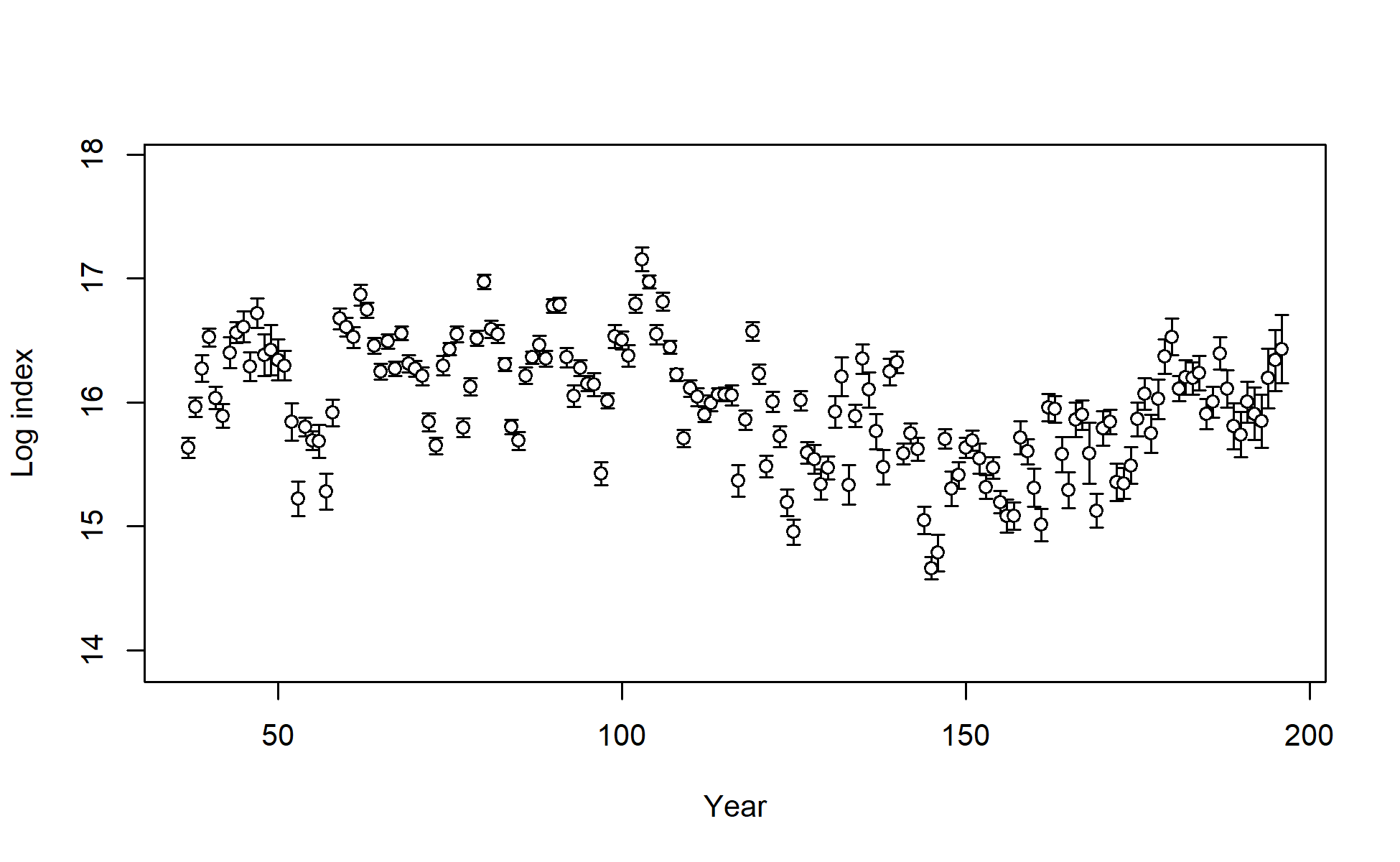

Log index data for S5_LL_Offshore. Lines indicate 95% uncertainty interval around index values based on the model assumption of lognormal error. Thicker lines (if present) indicate input uncertainty before addition of estimated additional uncertainty parameter.
file: index4_logcpuedata_S5_LL_Offshore.png

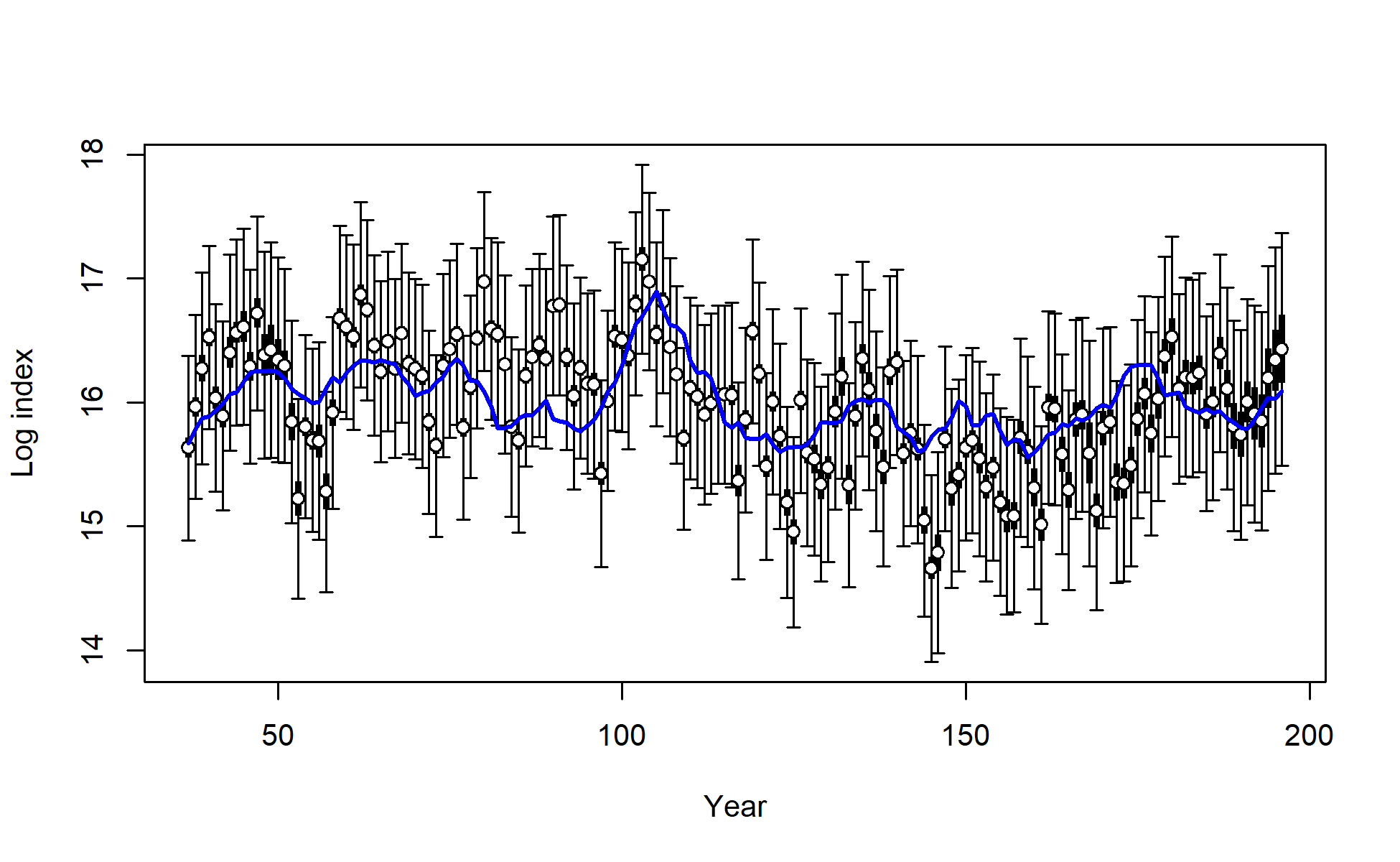

Fit to log index data on log scale for S5_LL_Offshore. Lines indicate 95% uncertainty interval around index values based on the model assumption of lognormal error. Thicker lines (if present) indicate input uncertainty before addition of estimated additional uncertainty parameter.
file: index5_logcpuefit_S5_LL_Offshore.png

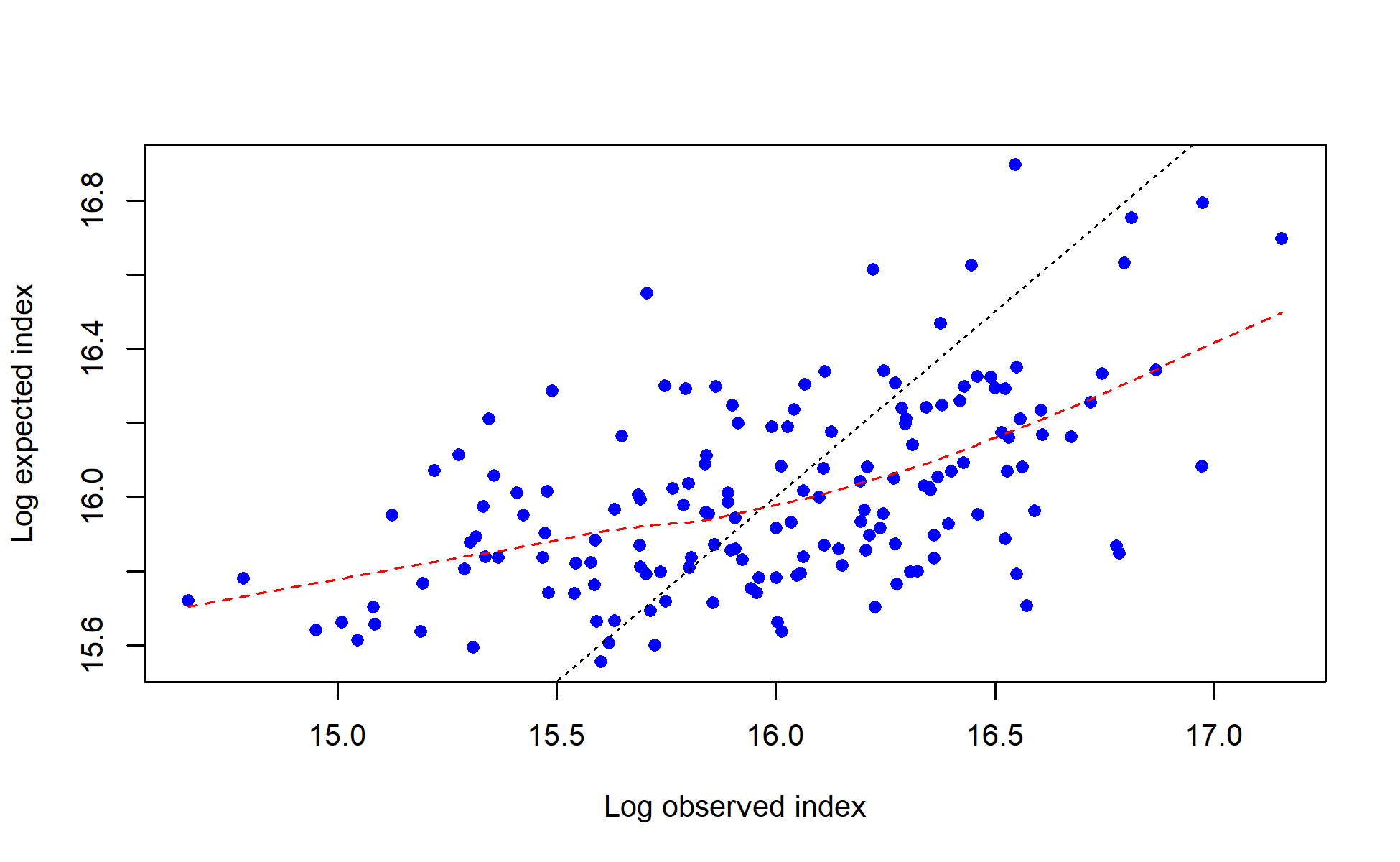

log(observed) vs. log(expected) index values with smoother for S5_LL_Offshore
file: index6_log_obs_vs_exp_S5_LL_Offshore.png

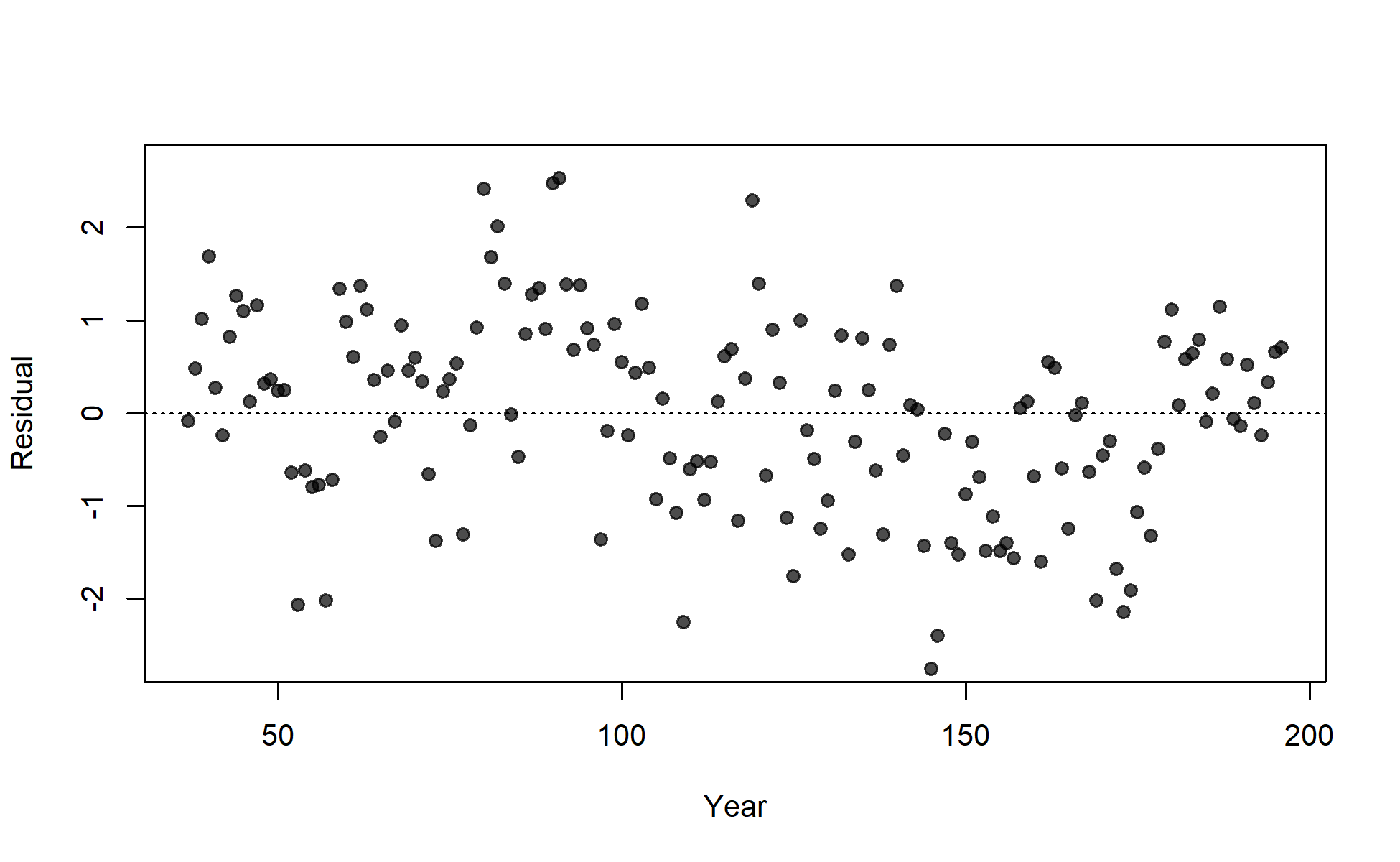

Residuals of fit to index for S5_LL_Offshore.
Values are (log(Obs) - log(Exp))/SE where SE is the total standard error including any estimated additional uncertainty.
file: index10_resids_SE_total_S5_LL_Offshore.png

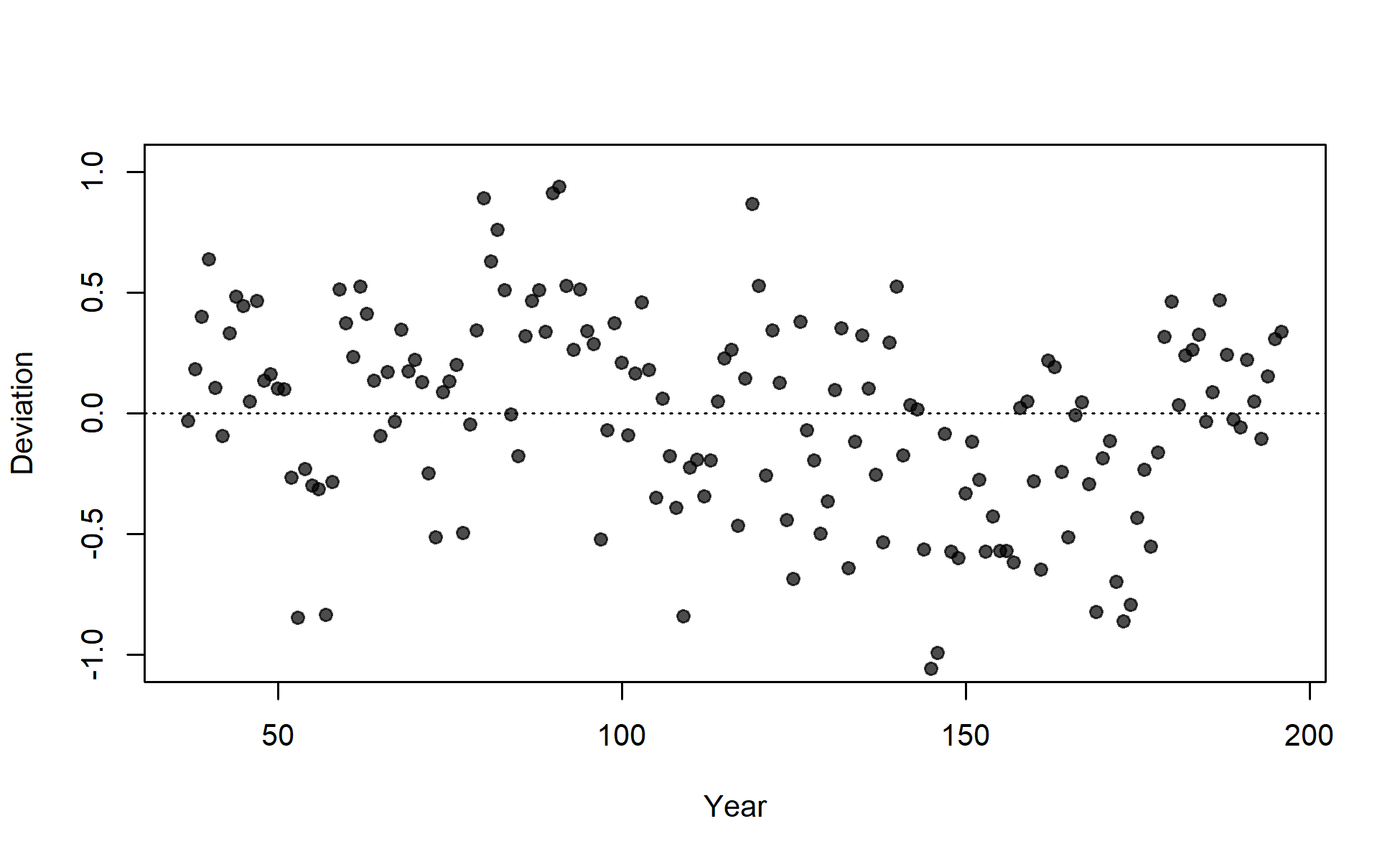

Deviations for fit to index for S5_LL_Offshore.
Values are log(Obs) - log(Exp) and thus independent of index uncertainty.
file: index12_resids_SE_total_S5_LL_Offshore.png

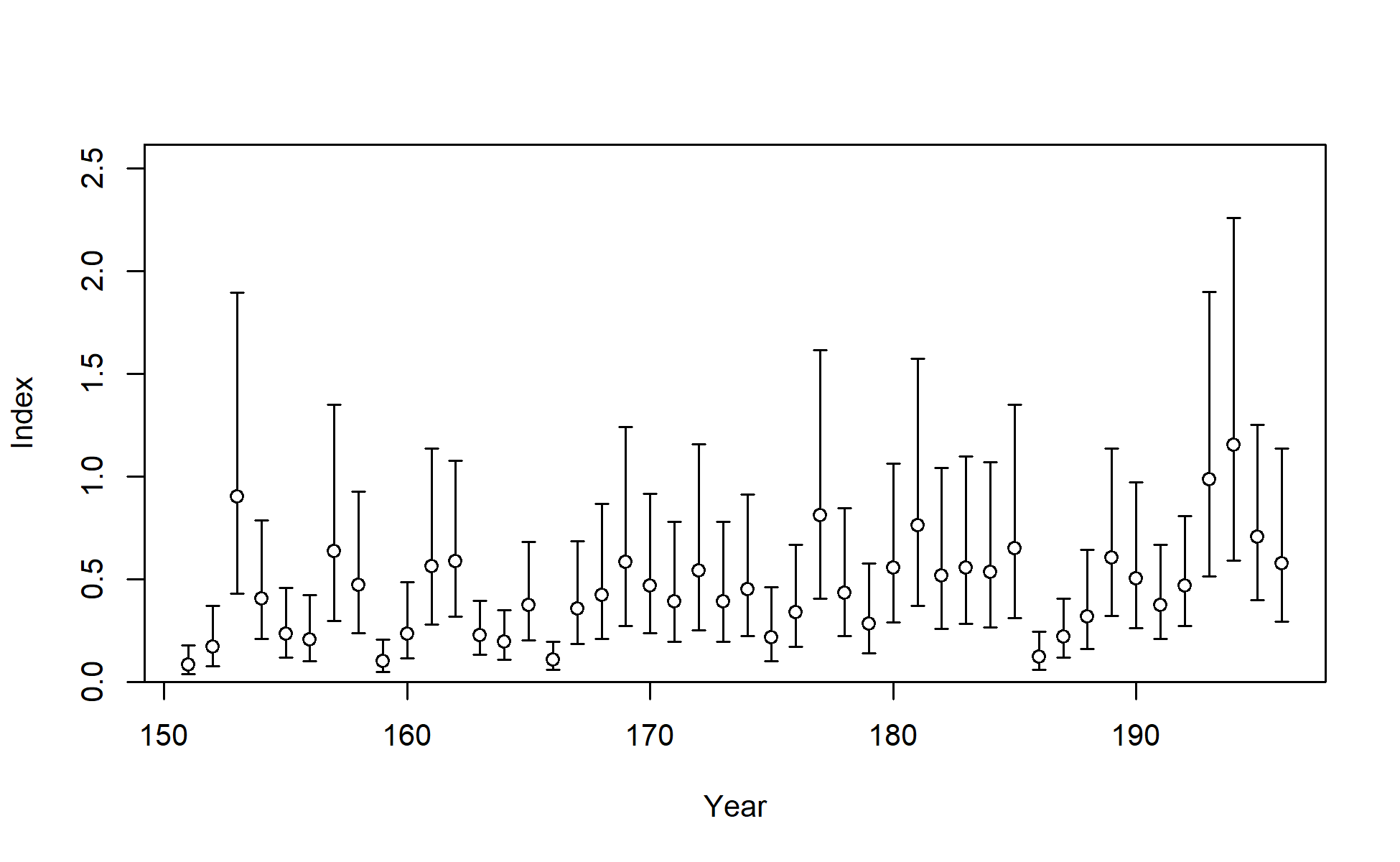

Index data for S7_PS_Echo_west. Lines indicate 95% uncertainty interval around index values based on the model assumption of lognormal error. Thicker lines (if present) indicate input uncertainty before addition of estimated additional uncertainty parameter.
file: index1_cpuedata_S7_PS_Echo_west.png

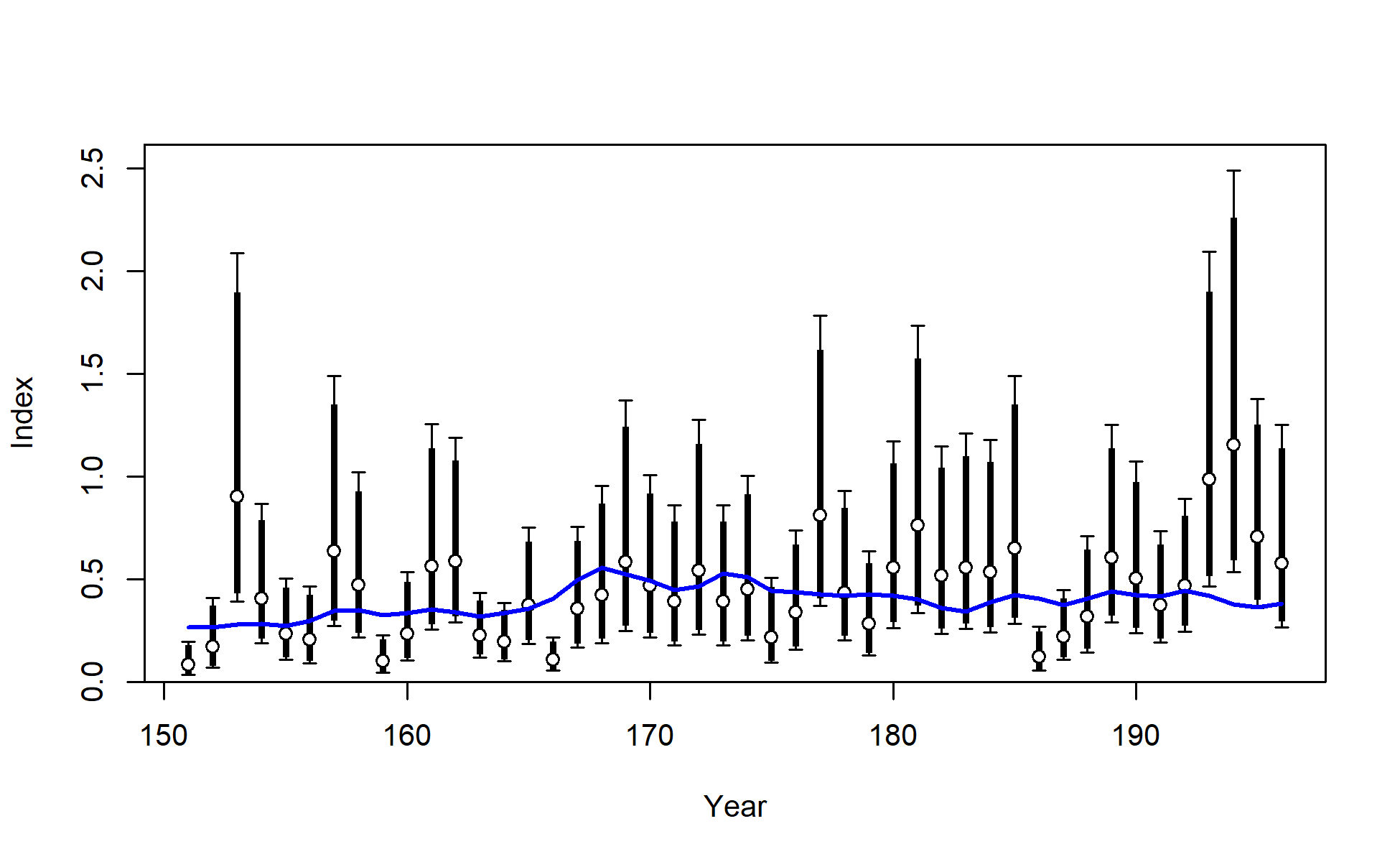

Fit to index data for S7_PS_Echo_west. Lines indicate 95% uncertainty interval around index values based on the model assumption of lognormal error. Thicker lines (if present) indicate input uncertainty before addition of estimated additional uncertainty parameter.
file: index2_cpuefit_S7_PS_Echo_west.png

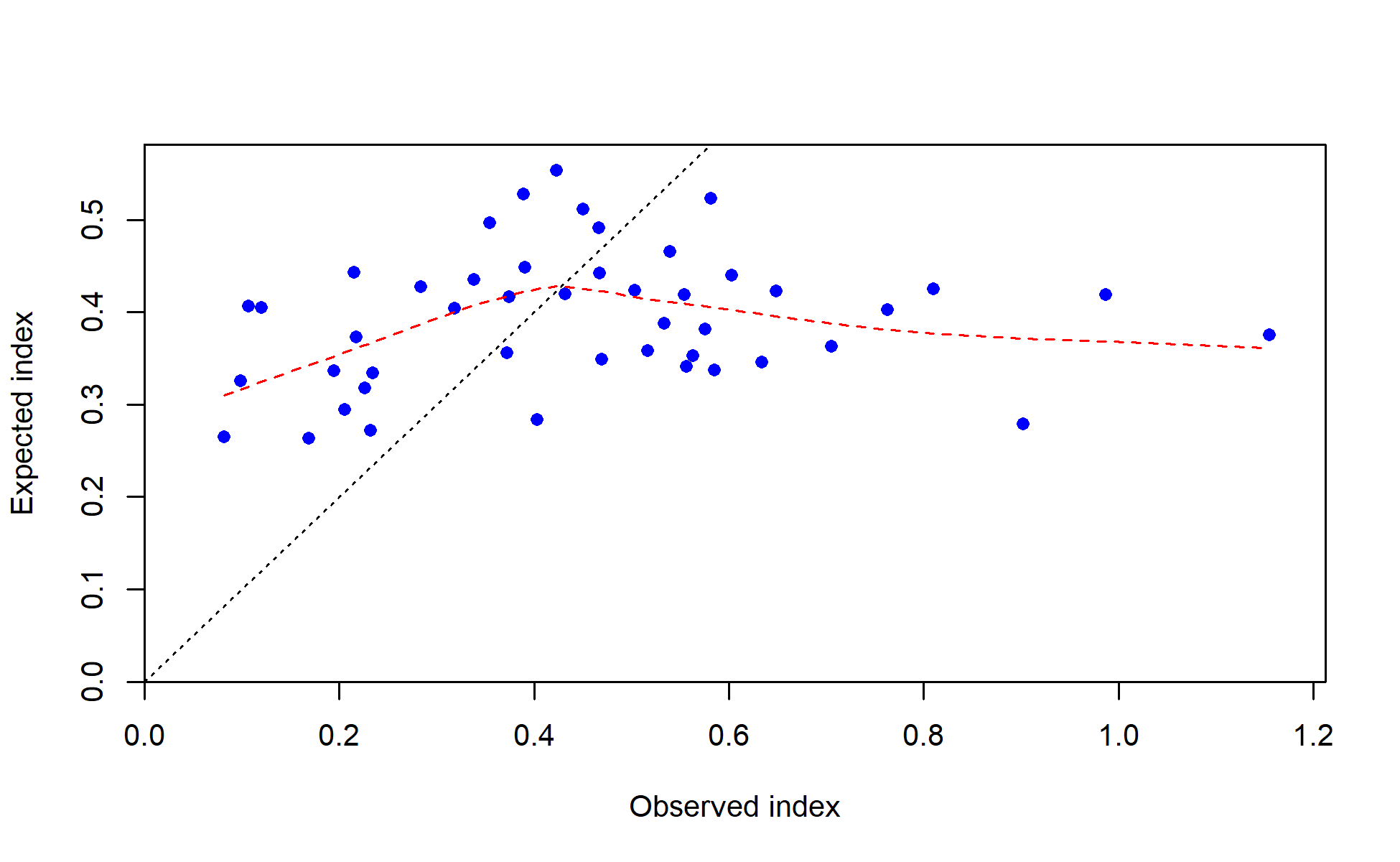

Observed vs. expected index values with smoother for S7_PS_Echo_west
file: index3_obs_vs_exp_S7_PS_Echo_west.png

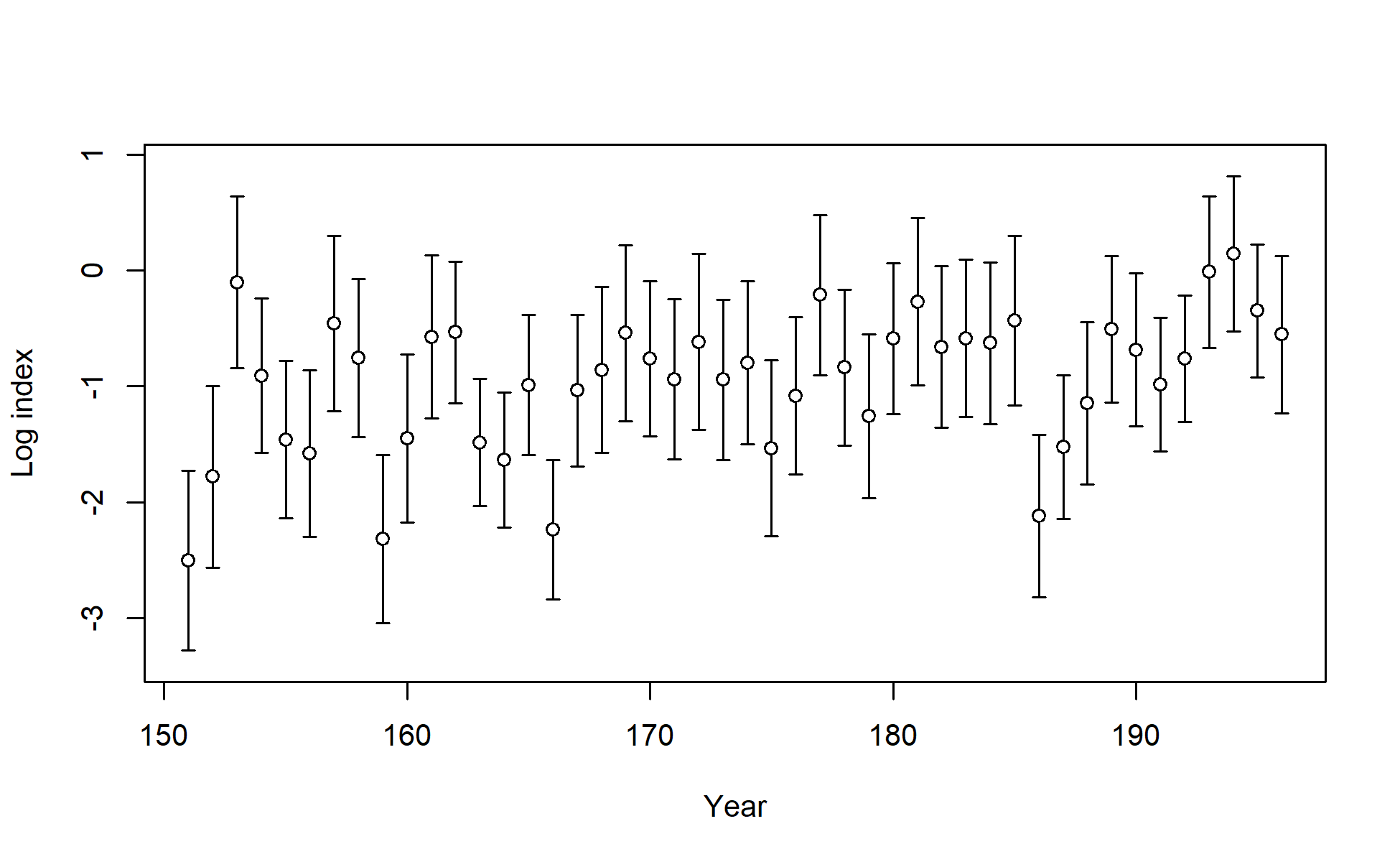

Log index data for S7_PS_Echo_west. Lines indicate 95% uncertainty interval around index values based on the model assumption of lognormal error. Thicker lines (if present) indicate input uncertainty before addition of estimated additional uncertainty parameter.
file: index4_logcpuedata_S7_PS_Echo_west.png

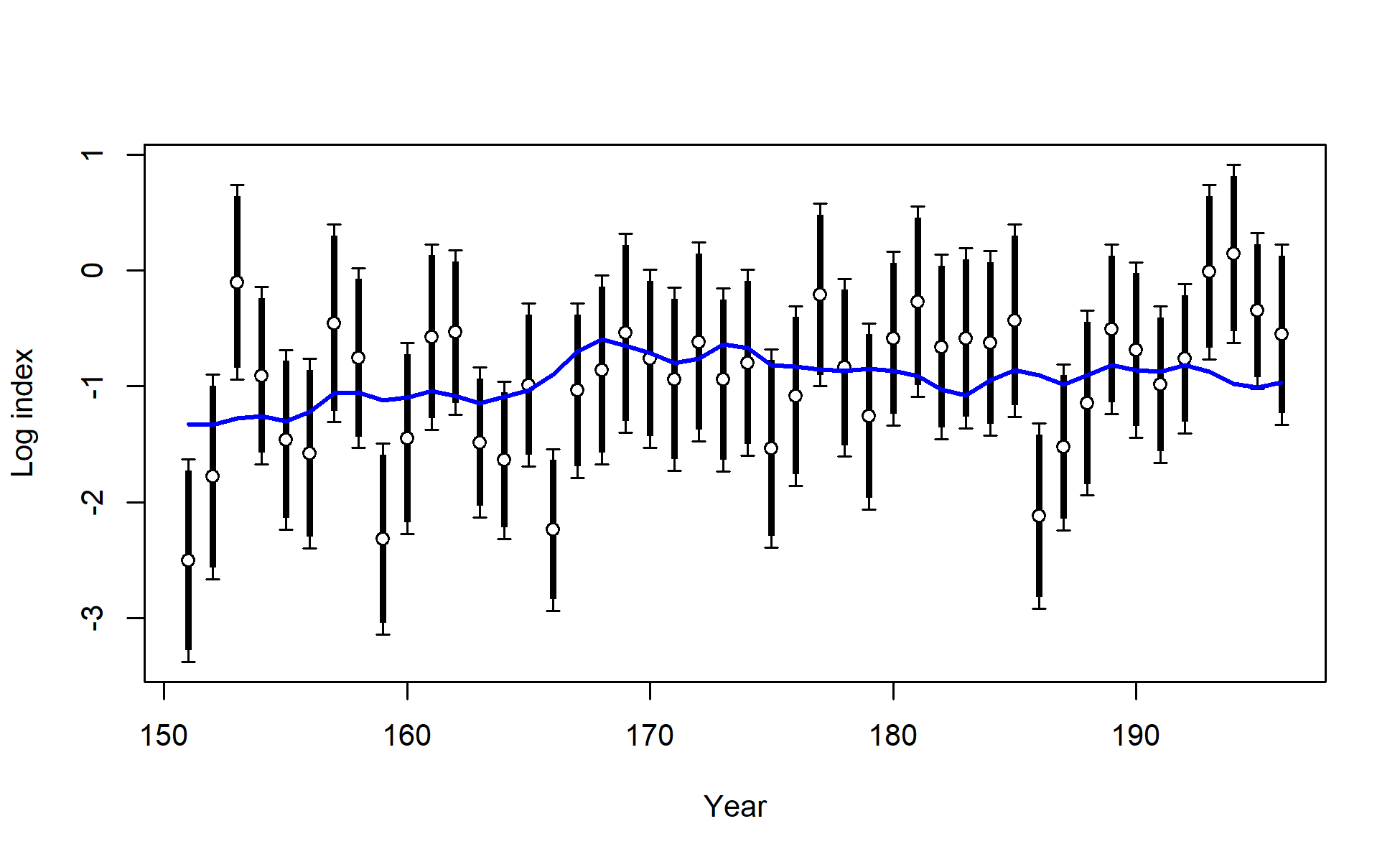

Fit to log index data on log scale for S7_PS_Echo_west. Lines indicate 95% uncertainty interval around index values based on the model assumption of lognormal error. Thicker lines (if present) indicate input uncertainty before addition of estimated additional uncertainty parameter.
file: index5_logcpuefit_S7_PS_Echo_west.png

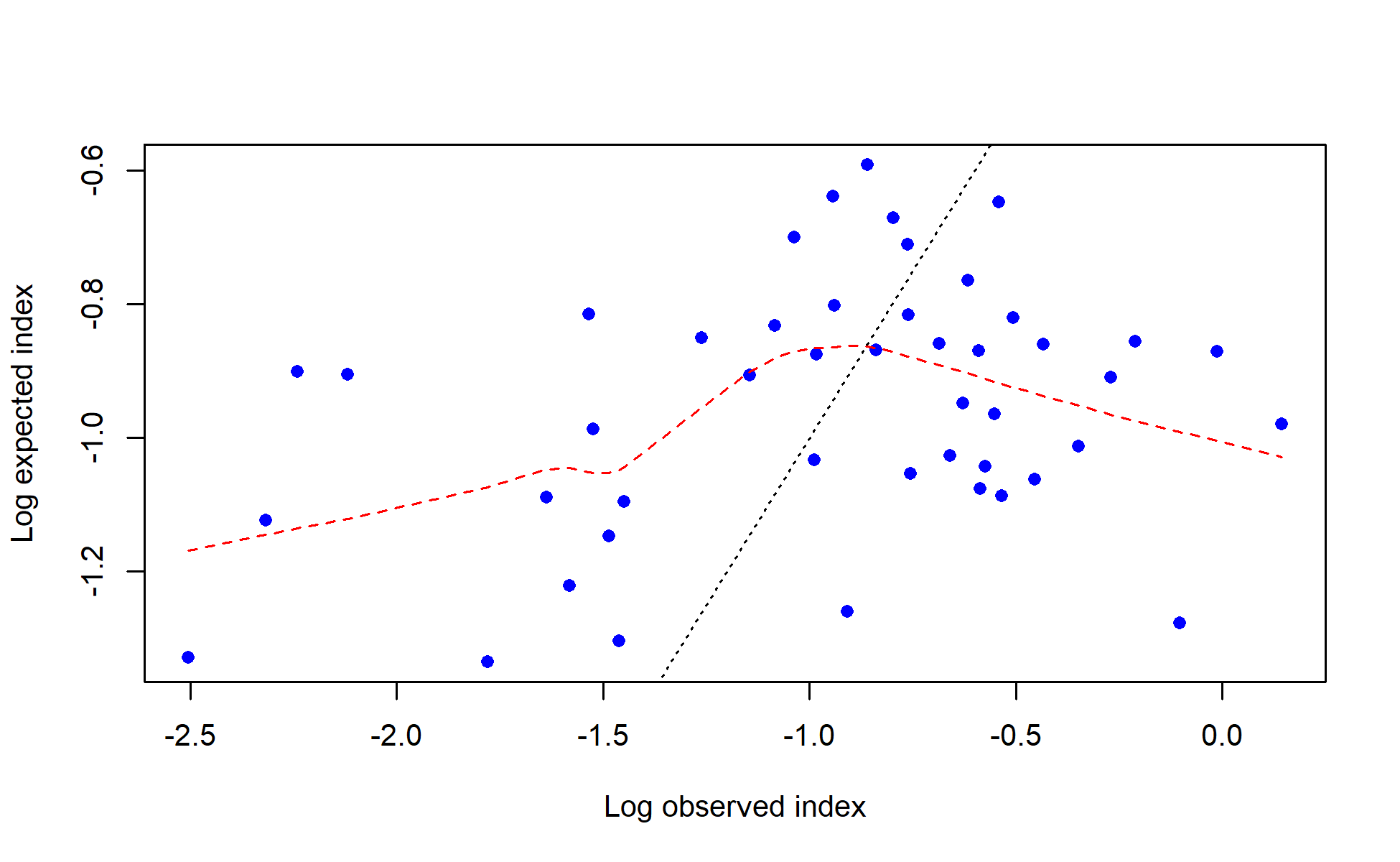

log(observed) vs. log(expected) index values with smoother for S7_PS_Echo_west
file: index6_log_obs_vs_exp_S7_PS_Echo_west.png

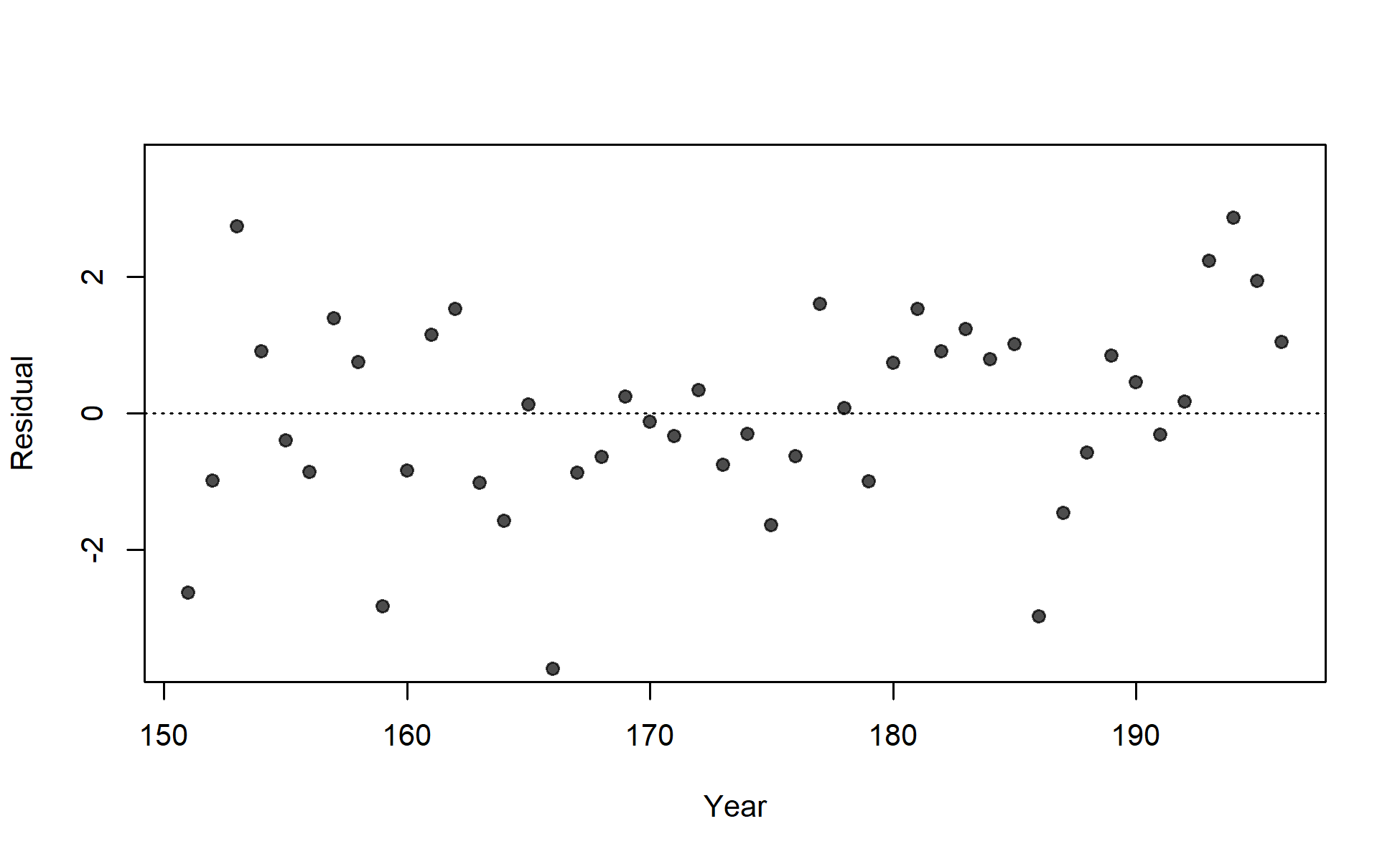

Residuals of fit to index for S7_PS_Echo_west.
Values are (log(Obs) - log(Exp))/SE where SE is the total standard error including any estimated additional uncertainty.
file: index10_resids_SE_total_S7_PS_Echo_west.png

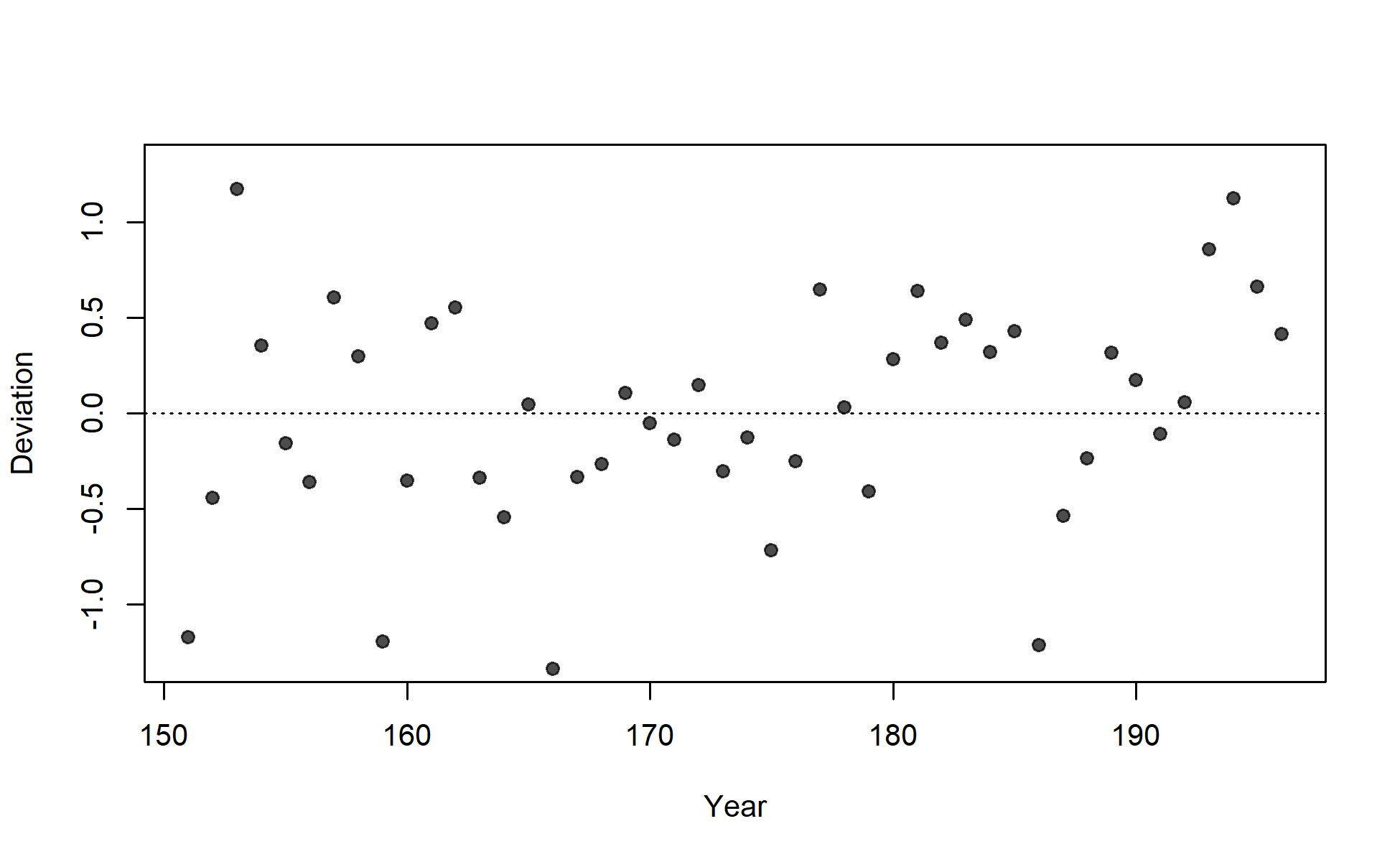

Deviations for fit to index for S7_PS_Echo_west.
Values are log(Obs) - log(Exp) and thus independent of index uncertainty.
file: index12_resids_SE_total_S7_PS_Echo_west.png

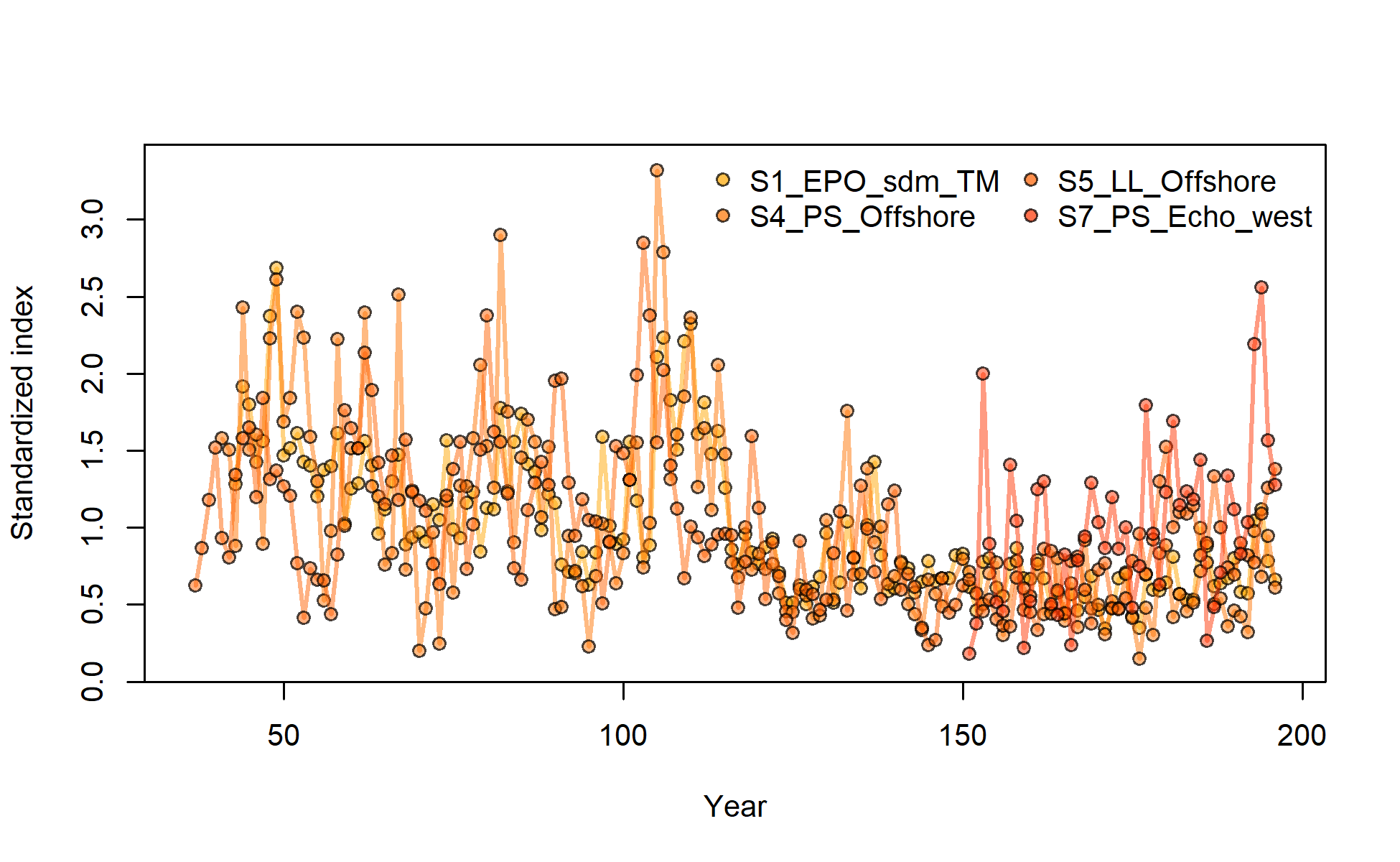

Standardized indices overlaid. Each index is rescaled to have mean observation = 1.0.
file: index9_standcpueall.png
